Welcome to the LimeSurvey Community Forum
Ask the community, share ideas, and connect with other LimeSurvey users!
setting bounce address doesn't work
- ViliusS
- Topic Author
- Offline
- New Member
we are trying to use different bounce and From: addresses on our surveys. We set "survey-bounces@example.net" in "Bounce email address" field and "surveys@example.net" in "Administrator email address" field on the survey. When I click "Send Invitation" the "From:" field is correctly prefilled with administrator's email address, but it seems that this also always overwrites the Return-Path: header in the survey invitation. No matter what I set in bounce field the Return-Path: header is always set the same as From: header. Is it a bug?
- DenisChenu
- Offline
- LimeSurvey Community Team
- Posts: 13935
- Thank you received: 2551
Mail method used ?
Else : some server force Return-Path
Assistance on LimeSurvey forum and LimeSurvey core development are on my free time.
I'm not a LimeSurvey GmbH member, professional service on demand , plugin development .
I don't answer to private message.
- ViliusS
- Topic Author
- Offline
- New Member
- Posts: 18
- Thank you received: 3
Using SMTP method with Office 365 SMTP AUTH service. I did similar setup for other email sending services, like newsletter generation software, on Office 365 without issues. Also, sending email through telnet doesn't force Return-Path, so I don't think it's Office 365 problem.
- holch
- Offline
- LimeSurvey Community Team
- Posts: 11757
- Thank you received: 2753
I answer at the LimeSurvey forum in my spare time, I'm not a LimeSurvey GmbH employee.
No support via private message.
- DenisChenu
- Offline
- LimeSurvey Community Team
- Posts: 13935
- Thank you received: 2551
Else it don't work …
See bugs.limesurvey.org/view.php?id=10529
[EDIT]
You have way to check what happen when sending SMTP email : activate mail debug to always : manual.limesurvey.org/Global_settings#Email_settings
Assistance on LimeSurvey forum and LimeSurvey core development are on my free time.
I'm not a LimeSurvey GmbH member, professional service on demand , plugin development .
I don't answer to private message.
- ViliusS
- Topic Author
- Offline
- New Member
- Posts: 18
- Thank you received: 3
I have investigated SMTP logs and it seems that the issue is that LimeSurvey doesn't set Return-Path: header at all. During the transmission it only sets MAIL FROM: and From: headers. More over LimeSurvey sets the MAIL FROM: with the value set in "Bounce email address" which is incorrect.
In my opinion
MAIL FROM: should be set to survey administrator email.
Return-Path: should be set to bounce email if it exist and is different from administrator email, if not do not set the header.
And From: header should be set to what is specified during invitation process.
For more information see tools.ietf.org/html/rfc5321#page-57
It is possible for the mailbox in the return path to be different from the actual sender's mailbox, for example, if error responses are to be delivered to a special error handling mailbox rather than to the message sender. When mailing lists are involved, this arrangement is common and useful as a means of directing errors to the list maintainer rather than the message originator.
- DenisChenu
- Offline
- LimeSurvey Community Team
- Posts: 13935
- Thank you received: 2551
Don't look at SMTP log please …ViliusS wrote: I have investigated SMTP logs and it seems that the issue is that LimeSurvey doesn't set Return-Path: header at all. During the transmission it only sets MAIL FROM: and From: headers. More over LimeSurvey sets the MAIL FROM: with the value set in "Bounce email address" which is incorrect.
Code don't lye :
github.com/LimeSurvey/LimeSurvey/blob/15...lper.php#L2248-L2252
github.com/LimeSurvey/LimeSurvey/blob/15...mon_helper.php#L2307
github.com/LimeSurvey/LimeSurvey/blob/15.../PHPMailer.php#L1689
Did you activate mail debug ?
MAIL FROM set the Return-Path … it's not the From …
I check !: it's OK.
SMTP user didn't appear
From is set to Adminsitrator email of the survey
Return-Path is set to bouce email
If you look at mail debug tyou see
2020-10-14 12:30:12 CLIENT -> SERVER: MAIL FROM : bouce email
2020-10-14 12:30:12 CLIENT -> SERVER: From: admin email

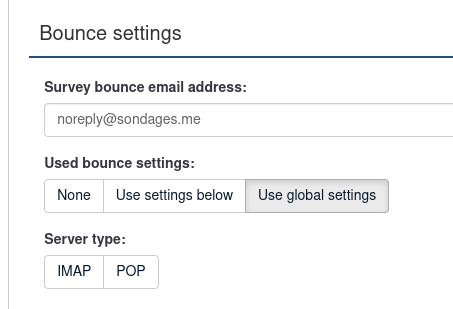

Did you verify bounce email in Survey settings ?
Assistance on LimeSurvey forum and LimeSurvey core development are on my free time.
I'm not a LimeSurvey GmbH member, professional service on demand , plugin development .
I don't answer to private message.
- ViliusS
- Topic Author
- Offline
- New Member
- Posts: 18
- Thank you received: 3
MAIL FROM is NOT the same as Return-Path when we are talking about a system which needs to process bounces. In that case Return-Path must be set by the PHP code, not the SMTP server.
- DenisChenu
- Offline
- LimeSurvey Community Team
- Posts: 13935
- Thank you received: 2551
www.postmastery.com/about-the-return-path-header/
About the Return-Path header
The most common error senders make is adding a Return-Path header to their mail. Even some well known mail software does this. Probably written by programmers who copy from others rather than reading RFCs (the internet standards that specify SMTP and MIME).
Update: As of PHPMailer version 5.2.8 the Return-Path header is no longer set in created messages.
Assistance on LimeSurvey forum and LimeSurvey core development are on my free time.
I'm not a LimeSurvey GmbH member, professional service on demand , plugin development .
I don't answer to private message.
- ViliusS
- Topic Author
- Offline
- New Member
- Posts: 18
- Thank you received: 3
To summarize:
- RFC5321 does not forbid to set Return-Path in the origin. It only says what SMTP server MUST DO:
Section 4.4.
and laterWhen the delivery SMTP server makes the “final delivery” of a message, it inserts a return-path line at the beginning of the mail data. This use of return-path is required; mail systems MUST support it. The return-path line preserves the information in the from the MAIL command. Here, final delivery means the message has left the SMTP environment. Normally, this would mean it had been delivered to the destination user or an associated mail drop, but in some cases it may be further processed and transmitted by another mail system.
Later RFC even talks about the case where Return-Path is added by the originating client, but again it doesn't forbid it.It is sometimes difficult for an SMTP server to determine whether or
not it is making final delivery since forwarding or other operations
may occur after the message is accepted for delivery. Consequently,
any further (forwarding, gateway, or relay) systems MAY remove the
return path and rebuild the MAIL command as needed to ensure that
exactly one such line appears in a delivered message.
Section 4.4.
Note "SHOULD NOT" here. As explained in RFC2119:A message-originating SMTP system SHOULD NOT send a message that
already contains a Return-path header field. SMTP servers performing
a relay function MUST NOT inspect the message data, and especially
not to the extent needed to determine if Return-path header fields
are present. SMTP servers making final delivery MAY remove Return-
path header fields before adding their own.SHOULD NOT This phrase, or the phrase "NOT RECOMMENDED" mean that
there may exist valid reasons in particular circumstances when the
particular behavior is acceptable or even useful, but the full
implications should be understood and the case carefully weighed
before implementing any behavior described with this label. - RFC5321 states that MAIL FROM: header is always the sender mailbox and nothing else.
Section 3.3.
Section 4.1.1.2.The <reverse-path> portion of the first or
only argument contains the source mailbox (between "<" and ">"
brackets), which can be used to report errors (see Section 4.2 for a
discussion of error reporting).
Note that here it states that the same sender mailbox can be used for error reporting, but this doesn't mean that, in case of a mailing list or other specialized bounce mailbox present, error reporting must always go to the MAIL FROM: address.The reverse-path consists of the sender mailbox. Historically, that
mailbox might optionally have been preceded by a list of hosts, but
that behavior is now deprecated (see Appendix C). In some types of
reporting messages for which a reply is likely to cause a mail loop
(for example, mail delivery and non-delivery notifications), the
reverse-path may be null (see Section 3.6). - RFC5321 clearly states that in some cases Return-Path could be completely different than the sender address and a system should not assume otherwise.
Section 4.4.
and Section 7.2.It is possible for the mailbox in the return path to be different
from the actual sender's mailbox, for example, if error responses are
to be delivered to a special error handling mailbox rather than to
the message sender. When mailing lists are involved, this
arrangement is common and useful as a means of directing errors to
the list maintainer rather than the message originator.
The text above implies that the final mail data will begin with a
return path line, followed by one or more time stamp lines. These
lines will be followed by the rest of the mail data: first the
balance of the mail header section and then the body (RFC 5322 [4]).There is no inherent relationship between either "reverse" (from
MAIL, SAML, etc., commands) or "forward" (RCPT) addresses in the SMTP
transaction ("envelope") and the addresses in the header section.
Receiving systems SHOULD NOT attempt to deduce such relationships and
use them to alter the header section of the message for delivery. - PHPMailer removed automatic setting of Return-Path header in 5.2.8 and in most cases, where a client just needs to send simple email, this is correct, but this doesn't mean that custom Return-Path header cannot be added. For example, if I would want to implement a mailing list software fully in PHP language by using PHPMailer I would need to set different MAIL FROM: and Return-Path headers otherwise it won't work. The same goes for LimeSurvey. As it has bounce processing capabilities it is not really a client anymore. It is an email processing server software and should modify Return-Path accordingly, using addCustomHeader() as an example.
- DenisChenu
- Offline
- LimeSurvey Community Team
- Posts: 13935
- Thank you received: 2551
You can hack code too, or create plugin.In 4 : you can use your own phpmailer …
Assistance on LimeSurvey forum and LimeSurvey core development are on my free time.
I'm not a LimeSurvey GmbH member, professional service on demand , plugin development .
I don't answer to private message.
- ViliusS
- Topic Author
- Offline
- New Member
- Posts: 18
- Thank you received: 3
If you don't care, I won't spend any more of my time here either.
