Scale numerical labeling

  • Anja-98
  • Anja-98's Avatar Topic Author
  • Offline
  • New Member
  • New Member
More
3 years 1 month ago #213598 by Anja-98
Scale numerical labeling was created by Anja-98
Hello there,

I recently designed a scale with "multiple numerical input"-question type which ranges from -7 to +7. Persons can move on it with a slider. Still I do have the following problem: Only the two poles are labeled with numerical value (-7/+7), but I would like to have it labeled in steps like: -7, -6,...,+6, +7 - I guess you get the idea.

Does anyone know how to do that? I have Version 3.23.4+200922.

I'm looking forward to your ideas! :)
The topic has been locked.
  • Joffm
  • Joffm's Avatar
  • Offline
  • LimeSurvey Community Team
  • LimeSurvey Community Team
More
3 years 1 month ago #213600 by Joffm
Replied by Joffm on topic Scale numerical labeling
Hi, Anja,

here
[url] forums.limesurvey.org/forum/can-i-do-thi...nput-question#195814 [/url]

and here
[url] forums.limesurvey.org/forum/can-i-do-thi...on-the-slider#209136 [/url]

and here

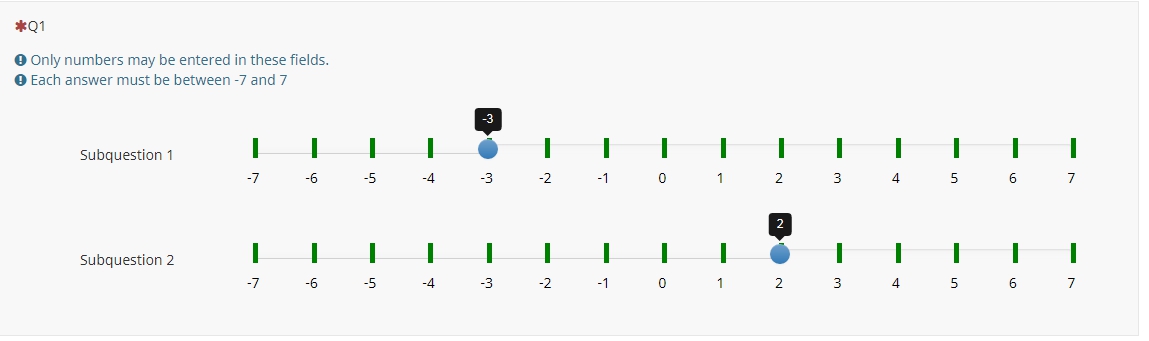

javascript in sourcecode of question
Code:
<script type="text/javascript" charset="utf-8">

    $(document).on('ready pjax:scriptcomplete',function(){

        // Identify this question
        var thisQuestion = $('#question{QID}');

        // Define the text strings
        var tipTexts = {
            -7:    '-7',
            -6:    '-6',
            -5:    '-5',
            -4:    '-4',
            -3:    '-3',
            -2:    '-2',
            -1:    '-1',
            0:    '0',
            1:    '1',
            2:    '2',
            3:    '3',
            4:    '4',
            5:    '5',
            6:    '6',
            7:    '7'
        };

        $('input:text', thisQuestion).on('slideEnabled',function(){
            var thisItem = $(this).closest('li');

            // Insert custom tooltip
            $('.tooltip-inner', thisItem).addClass('tooltip-inner-1 hidden');
            $('.tooltip', thisItem).append('<div class="tooltip-inner tooltip-inner-2">'+tipTexts[$(this).val()]+'</div>');

            // Listener on slider
            $(this).on('slide slideStop', function(event) {
                // Handle dynamic tooltip text
                $('.tooltip-inner-2', thisItem).text(tipTexts[$(this).val()]);
            });
        });
    });
</script><script type="text/javascript" charset="utf-8">
    $(document).on('ready pjax:scriptcomplete',function(){

        var ticksArray = [
            [-7, '-7'],
            [-6, '-6'],
            [-5, '-5'],
            [-4, '-4'],
            [-3, '-3'],
            [-2, '-2'],
            [-1, '-1'],
            [0, '0'],
            [1, '1'],
            [2, '2'],
            [3, '3'],
            [4, '4'],
            [5, '5'],
            [6, '6'],
            [7, '7'],
        ];

        insertSliderTicks('{QID}', ticksArray);
    });

    /* Insert Slider Tick Marks */
    function insertSliderTicks(qID, ticksArray) {
        var thisQuestion = $('#question'+qID);

        $(thisQuestion).addClass('with-inserted-ticks');

        $('input:text', thisQuestion).on('slideEnabled',function(){
            var thisSlider = $(this);
            var thisItem = $(thisSlider).closest('li');
            var thisMin = $('.slider-handle:eq(0)', thisItem).attr('aria-valuemin');
            var thisMax = $('.slider-handle:eq(0)', thisItem).attr('aria-valuemax');
            var thisRange = thisMax - thisMin;
            $.each(ticksArray, function(i, val) {
                var tickRelativePosition = val[0] - thisMin;
                var tickPercent = (tickRelativePosition/thisRange)*100;

                // Insert tick marks
                $('.slider-handle:eq(0)', thisItem).before('<div class="inserted-tick left-'+tickPercent+'" style="left: '+tickPercent+'%">\
                                                    <div class="tick-text">'+val[1]+'</div>\
                                                </div>');
            });
        });
    }
</script>
<style type="text/css">/* Slider Tick Marks */

    @media only screen and (min-width: 768px) {

        .with-inserted-ticks .slider-container {
            padding-right: 50px;
            padding-left: 50px;
        }
    }

    .with-inserted-ticks .slider-item {
        margin-bottom: 50px;
    }

    .with-inserted-ticks .slider-container .help-block {
        margin: 25px 0 0 -20px;
        width: 40px;
        text-align: center;
    }

    .with-inserted-ticks .slider-container .help-block.pull-right {
        margin: 25px -20px 0 0;
    }

    .inserted-tick {
        position: absolute;
        top: 20%;
        height: 20px;
        width: 5px;
        margin-top: -5px;
        margin-left: -1px;
        background-color: #DDDDDD;
        background-color: green;
    }

    .inserted-tick.left-0,
    .inserted-tick.left-100 {
        background-color: transparent;
        background-color: green;
    }

    .inserted-tick .tick-text {
        position: absolute;
        top: 150%;
        width: 100px;
        margin-left: -50px;
        color: #000000;
        text-align: center;
    }

    @media only screen and (max-width: 768px) {

        .inserted-tick.left-0 .tick-text {
            margin-left: 0px;
            text-align: left;
        }

        .inserted-tick.left-100 .tick-text {
            margin-left: -100px;
            text-align: right;
        }
    }
</style>



File Attachment:

File Name: limesurvey...5936.lss
File Size:21 KB


Joffm

Volunteers are not paid.
Not because they are worthless, but because they are priceless
The topic has been locked.
  • Joffm
  • Joffm's Avatar
  • Offline
  • LimeSurvey Community Team
  • LimeSurvey Community Team
More
3 years 1 month ago #213629 by Joffm
Replied by Joffm on topic Scale numerical labeling
Just to add something.

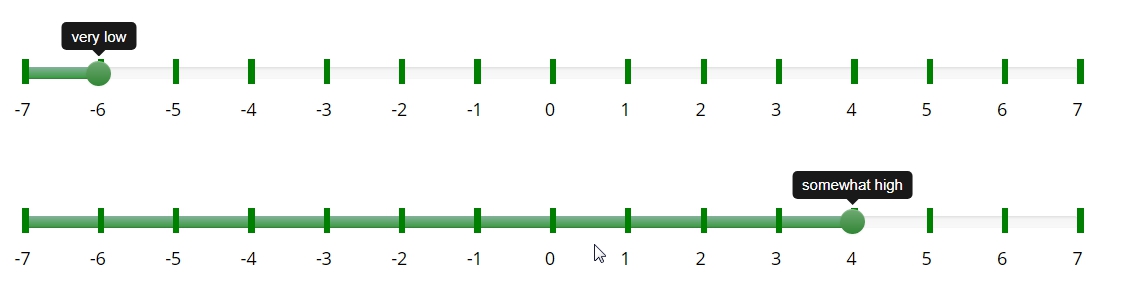

The first javascript snippet is only necessary if you want to change the tooltip texts.


And beware of the negative indices.


So in your case you may remove it.

Joffm

Volunteers are not paid.
Not because they are worthless, but because they are priceless
The topic has been locked.
  • DenisChenu
  • DenisChenu's Avatar
  • Offline
  • LimeSurvey Community Team
  • LimeSurvey Community Team
More
2 years 6 months ago #221244 by DenisChenu
Replied by DenisChenu on topic Scale numerical labeling
I like to have this in settings :)

Assistance on LimeSurvey forum and LimeSurvey core development are on my free time.
I'm not a LimeSurvey GmbH member, professional service on demand , plugin development .
I don't answer to private message.
The topic has been locked.
  • tpartner
  • tpartner's Avatar
  • Offline
  • LimeSurvey Community Team
  • LimeSurvey Community Team
More
2 years 6 months ago #221249 by tpartner
Replied by tpartner on topic Scale numerical labeling
Custom question theme? :)

Cheers,
Tony Partner

Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.
The following user(s) said Thank You: DenisChenu
The topic has been locked.
  • DenisChenu
  • DenisChenu's Avatar
  • Offline
  • LimeSurvey Community Team
  • LimeSurvey Community Team
More
2 years 5 months ago #221254 by DenisChenu
Replied by DenisChenu on topic Scale numerical labeling

Custom question theme? :)

Unsure : think it can be a settings since it's only some option on an already existing system … allways 2 or 3 ways to do :
- QuestionTheme
- Plugin QuestionAttribute
- SurveyTheme (the Fixed header for table in skelvanilla is more a question related part).

Assistance on LimeSurvey forum and LimeSurvey core development are on my free time.
I'm not a LimeSurvey GmbH member, professional service on demand , plugin development .
I don't answer to private message.
The topic has been locked.
