Add tick marks and extra label to slider of multiple numerical input question)

  • bottleneck
  • bottleneck's Avatar Topic Author
  • Offline
  • New Member
  • New Member
More
4 years 8 months ago #195792 by bottleneck
Hello,
I would like to change the appearance of the multiple numerical input question slider as follows
  • I want to insert a label in the middle of the scale.
  • I would like to place a checkmark every 20 units on a scale from 0 to 200.

I am using a hosted version of LimeSurvey 3.15.1. Due to the policies of the hosting service I cannot change the .css or .js templates.
I have tried to include the following code.
Code:
<script type="text/javascript" charset="utf-8">
  $(document).on('ready pjax:scriptcomplete', function() {
    var thisQuestion = $(
    '#question{QID}');
    $(thisQuestion).slider({
      ticks: [0, 20, 40, 60, 80, 100, 120, 140, 160, 180, 200],
      ticks_labels: ['Label left', '', '', '', '', 'Label mid', '', '', '', '', 'Label right'],
      ticks_snap_bounds: 20,
    });
  });
</script>
It adds a nice but unintended extra slider to my questions.
Where can I insert the code and how do I adjust it to change the look of my slider?

Thank you!
Best wishes
The topic has been locked.
  • tpartner
  • tpartner's Avatar
  • Offline
  • LimeSurvey Community Team
  • LimeSurvey Community Team
More
4 years 8 months ago - 4 years 8 months ago #195814 by tpartner
Try this...

JavaScript

Code:
<script type="text/javascript" charset="utf-8">
  $(document).on('ready pjax:scriptcomplete',function(){

    var ticksArray = [
      [0, 'Label left'],
      [20, ''],
      [40, ''],
      [60, ''],
      [80, ''],
      [100, 'Label mid'],
      [120, ''],
      [140, ''],
      [160, ''],
      [180, ''],
      [200, 'Label right'],
    ];

    insertSliderTicks('{QID}', ticksArray);
    });

  /* Insert Slider Tick Marks */
  function insertSliderTicks(qID, ticksArray) {
    var thisQuestion = $('#question'+qID);

    $(thisQuestion).addClass('with-inserted-ticks');

    $('input:text', thisQuestion).on('slideEnabled',function(){
      var thisSlider = $(this);
      var thisItem = $(thisSlider).closest('li');
      var thisMin = $('.slider-handle:eq(0)', thisItem).attr('aria-valuemin');
      var thisMax = $('.slider-handle:eq(0)', thisItem).attr('aria-valuemax');
      var thisRange = thisMax - thisMin;
      $.each(ticksArray, function(i, val) {
        var tickRelativePosition = val[0] - thisMin;
        var tickPercent = (tickRelativePosition/thisRange)*100;

        // Insert tick marks
        $('.slider-handle:eq(0)', thisItem).before('<div class="inserted-tick left-'+tickPercent+'" style="left: '+tickPercent+'%">\
                          <div class="tick-text">'+val[1]+'</div>\
                        </div>');
      });
    });
  }
</script>

CSS

Code:
<style type="text/css">

  /* Slider Tick Marks */

  @media only screen and (min-width: 768px) {

    .with-inserted-ticks .slider-container {
      padding-right: 50px;
      padding-left: 50px;
    }
  }

  .with-inserted-ticks .slider-item {
    margin-bottom: 50px;
  }

  .with-inserted-ticks .slider-container .help-block {
    margin: 25px 0 0 -20px;
    width: 40px;
    text-align: center;
  }

  .with-inserted-ticks .slider-container .help-block.pull-right {
    margin: 25px -20px 0 0;
  }

  .inserted-tick {
    position: absolute;
    top: 50%;
    height: 10px;
    width: 2px;
    margin-top: -5px;
    margin-left: -1px;
    background-color: #DDDDDD;
  }

  .inserted-tick.left-0,
  .inserted-tick.left-100 {
    background-color: transparent;
  }

  .inserted-tick .tick-text {
    position: absolute;
    top: 150%;
    width: 100px;
    margin-left: -50px;
    color: #000000;
    text-align: center;
  }

  @media only screen and (max-width: 768px) {

    .inserted-tick.left-0 .tick-text {
      margin-left: 0px;
      text-align: left;
    }

    .inserted-tick.left-100 .tick-text {
      margin-left: -100px;
      text-align: right;
    }
  }
</style>

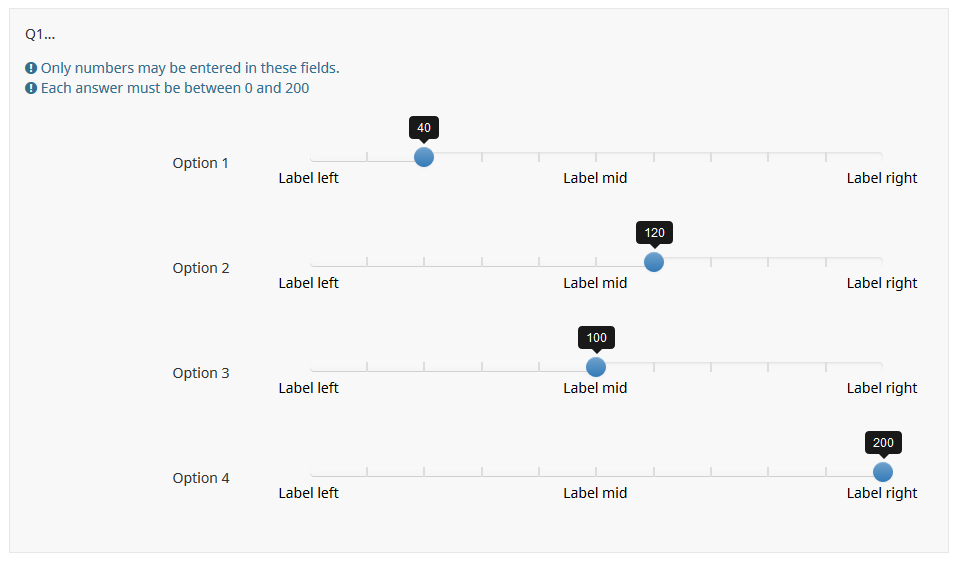

Sample survey attached:

File Attachment:

File Name: limesurvey...3-25.lss
File Size:21 KB

Cheers,
Tony Partner

Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.
Last edit: 4 years 8 months ago by tpartner.
The following user(s) said Thank You: bottleneck
The topic has been locked.
  • bottleneck
  • bottleneck's Avatar Topic Author
  • Offline
  • New Member
  • New Member
More
4 years 8 months ago #195841 by bottleneck
Best thanks, the solution works great! You made my day.
