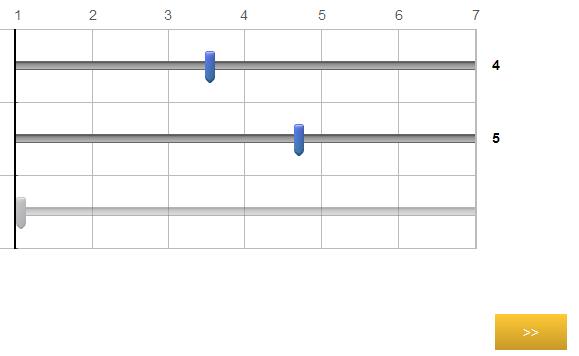

I'm not sure where you are going with the blue and yellow slider but here is a copy of Ben Olson's plugin modified slightly to work in LS 2.0:
Code:
/*!
* Copyright (c) 2012 Ben Olson (https://github.com/bseth99/jquery-ui-extensions)
* jQuery UI LabeledSlider @VERSION
*
* Permission is hereby granted, free of charge, to any person
* obtaining a copy of this software and associated documentation
* files (the "Software"), to deal in the Software without
* restriction, including without limitation the rights to use,
* copy, modify, merge, publish, distribute, sublicense, and/or sell
* copies of the Software, and to permit persons to whom the
* Software is furnished to do so, subject to the following
* conditions:
*
* The above copyright notice and this permission notice shall be
* included in all copies or substantial portions of the Software.
*
* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
* EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES
* OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
* NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT
* HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
* WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
* FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR
* OTHER DEALINGS IN THE SOFTWARE.
*
* Depends:
* jquery.ui.core.js
* jquery.ui.widget.js
* jquery.ui.mouse.js
* jquery.ui.slider.js
*
* Modified for LimeSurvey 2.0 by Tony Partner - https://partnersurveys.com
*/
(function( $, undefined ) {
$.widget( "ui.labeledslider", $.ui.slider, {
version: "@VERSION",
options: {
tickInterval: 0,
tweenLabels: true,
tickLabels: null,
tickArray: []
},
uiSlider: null,
tickInterval: 0,
tweenLabels: true,
_create: function( ) {
this._detectOrientation();
this.uiSlider =
this.element
.wrap( '<div class="ui-slider-wrapper ui-widget"></div>' )
.before( '<div class="ui-slider-labels"></div>' )
.parent()
.addClass( this.orientation )
.css( 'font-size', this.element.css('font-size') );
this.element.removeClass( 'ui-widget' )
this._alignWithStep();
if ( this.orientation == 'horizontal' ) {
this.uiSlider
.width( this.element.css('width') );
} else {
this.uiSlider
.height( this.element.css('height') );
}
this._drawLabels();
},
_drawLabels: function () {
var labels = this.options.tickLabels || {},
$lbl = this.uiSlider.children( '.ui-slider-labels' ),
dir = this.orientation == 'horizontal' ? 'left' : 'bottom',
min = this.options.min,
max = this.options.max,
inr = this.tickInterval,
cnt = ( max - min ),
tickArray = this.options.tickArray,
ta = tickArray.length > 0,
label, pt,
i = 0;
$lbl.html('');
for (;i<=cnt;i++) {
if ( ( !ta && i%inr == 0 ) || ( ta && tickArray.indexOf( i+min ) > -1 ) ) {
label = labels[i+min] ? labels[i+min] : (this.options.tweenLabels ? i+min : '');
$('<div>').addClass( 'ui-slider-label-ticks' )
.css( dir, (Math.round( ( i / cnt ) * 10000 ) / 100) + '%' )
.html( '<span>'+( label )+'</span>' )
.appendTo( $lbl );
}
}
},
_setOption: function( key, value ) {
switch ( key ) {
case 'tickInterval':
case 'tickLabels':
case 'tickArray':
case 'min':
case 'max':
case 'step':
this._alignWithStep();
this._drawLabels();
break;
case 'orientation':
this.element
.removeClass( 'horizontal vertical' )
.addClass( this.orientation );
this._drawLabels();
break;
}
},
_alignWithStep: function () {
if ( this.options.tickInterval < this.options.step )
this.tickInterval = this.options.step;
else
this.tickInterval = this.options.tickInterval;
},
_destroy: function() {
this.uiSlider.replaceWith( this.element );
},
widget: function() {
return this.uiSlider;
}
});
}(jQuery));

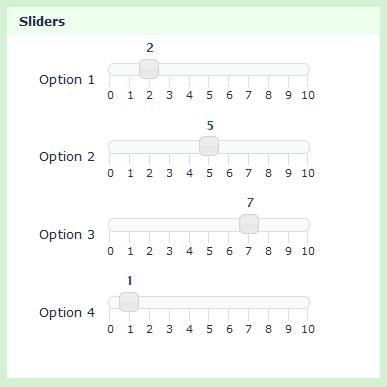

In LS 2.0, if you have a slider with minimum 0, maximum 70 and you want the tick marks on the tens, you would apply the plugin like this:
Code:
.numeric-multi label.slider-label {
padding: 0 1em 2.5em 0;
}
.slider_callout {
margin-left: -50px;
text-align: center;
top: -20px;
width: 100px;
}
.numeric-multi .ui-slider-handle {
top: -0.35em;
width: 18px;
height: 18px;
margin-left: -10px;
}
.ui-slider-wrapper { position: relative; }
.ui-slider-labels {
position: absolute;
border: 1px solid transparent;
}
.ui-slider-label-ticks {
border: 1px solid transparent;
position: absolute;
white-space: nowrap;
}
.ui-slider-label-ticks span {
min-width: 1.2em;
font-size: 0.8em;
font-weight: normal;
font-family: Verdana,Arial,Helvetica,sans-serif;
font-style: normal;
padding: 2px 0 0 0 !important;
}
.ui-slider-wrapper.horizontal { height: 4.5em; }
.horizontal .ui-slider-labels {
left: 0;
right: 0;
top: 0.6em
}
.horizontal .ui-slider-label-ticks {
width: 1.2em;
height: .8em;
text-align: center;
border-left: 1px solid #DDDDDD;
margin-left: 1px;
}
.horizontal .ui-slider-label-ticks span {
position: absolute;
display: inline-block;
width: 1.2em;
left: -0.6em;
top: .8em;
}
