Can do this in Limesurevy

More
1 month 1 week ago - 1 month 1 week ago #275157 by rajkumar_dms


File Attachment:

File Name: limesurvey...3991.lss
File Size:60.21 KB
Please help us help you and fill where relevant:
Your LimeSurvey version: [7.0.15]
Own server or LimeSurvey hosting:Cloud
Survey theme/template:
==================
Can help me to create the survey as per attachment design


File Attachment:

File Name: limesurvey...3991.lss
File Size:60.21 KB



Last edit: 1 month 1 week ago by rajkumar_dms.

Please Log in to join the conversation.

More
1 month 1 week ago #275158 by Joffm
Replied by Joffm on topic Can do this in Limesurevy

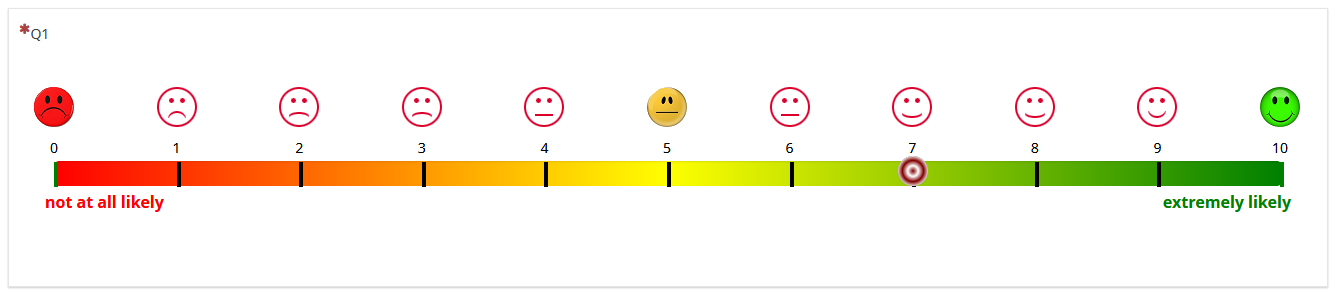

Some quick ideas.
I have no other smileys


With bootstrap icons, but feel free to use your own.


And from my "Tutorial 3: Gimmicks", Chapter 13.3.2. (in the German part)


Joffm

Volunteers are not paid.
Not because they are worthless, but because they are priceless

Please Log in to join the conversation.

More
1 month 1 week ago - 1 month 1 week ago #275159 by rajkumar_dms
thanks

can you share the lss file for the same
Last edit: 1 month 1 week ago by rajkumar_dms.

Please Log in to join the conversation.

More
1 month 1 week ago - 1 month 1 week ago #275162 by Joffm
Replied by Joffm on topic Can do this in Limesurevy
Hi, another idea for the second question.
This approach that is usually used in a conjoint survey (where the radio buttons of the array are merged into the HTML table)


Joffm

BTW: You still did not mention which theme you are using


Volunteers are not paid.
Not because they are worthless, but because they are priceless
Last edit: 1 month 1 week ago by Joffm.

Please Log in to join the conversation.

More
1 month 1 week ago #275163 by rajkumar_dms
use fruity twenty three

Please Log in to join the conversation.

More
1 month 1 week ago - 1 month 1 week ago #275165 by Joffm
Replied by Joffm on topic Can do this in Limesurevy
Hi,
the AI was not so bad for Q1 - even a bit long-winded.

So the only things left are the colors of the bootstrap buttons and the array.

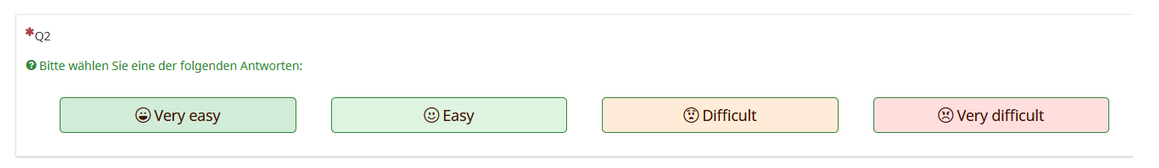

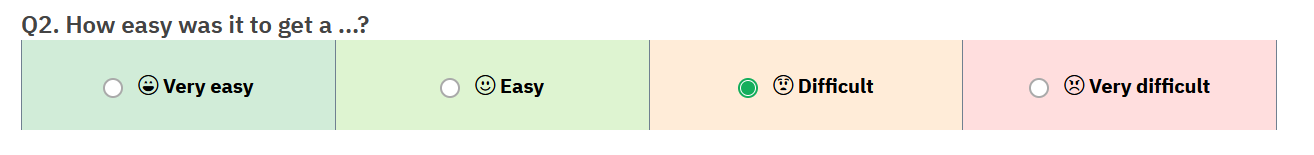

Q2. This css snippet should do it.
Because I used bootstrap emojis the first line loads this library.
And to avoid a conflict wtih the "previous" and "next" button there is the additional class "mybtn".
Code:
<link href="https://cdn.jsdelivr.net/npm/bootstrap-icons@1.13.1/font/bootstrap-icons.min.css" rel="stylesheet" /> <style type="text/css"> .mybtn .bootstrap-buttons-div:nth-child(1) .btn-primary {   border-color:  !important;   color: #3d1100 !important;   background-color: #d1ecd8 !important; } .mybtn .bootstrap-buttons-div:nth-child(2) .btn-primary {   border-color:  !important;   color: #3d1100 !important;   background-color: #def4e1 !important; } .mybtn .bootstrap-buttons-div:nth-child(3) .btn-primary {   border-color:  !important;   color: #3d1100 !important;   background-color: #ffecd8 !important; } .mybtn .bootstrap-buttons-div:nth-child(4) .btn-primary {   border-color:  !important;   color: #3d1100 !important;   background-color: #ffdede !important; }   .mybtn .btn-check:active + .btn-primary,  .mybtn .btn-check:checked + .btn-primary,  .mybtn .btn-check:focus + .btn-primary,  .mybtn .btn-primary.active, .mybtn .btn-primary.active.active,  .mybtn .btn-primary:active, .mybtn .btn-primary:focus {    border-color: #3d1100 !important;    color: #3d1100 !important;    background-color: red !important; } </style>

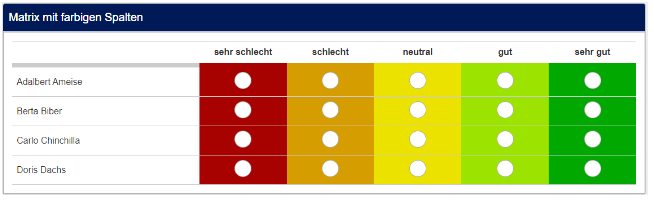

Q3. The array:
You insert an additional header and colour the columns and headers.
Again there are bootstrap emojis; so the library is loaded
script:
Code:
<link href="https://cdn.jsdelivr.net/npm/bootstrap-icons@1.13.1/font/bootstrap-icons.min.css" rel="stylesheet" /> <script type="text/javascript" charset="utf-8">     $(document).on('ready pjax:scriptcomplete',function(){           // Identify this question         var thisQuestion = $('#question{QID}');                  // Add a question class         thisQuestion.addClass('custom-array');        // Insert header text        var insertedText = "Aspect";        $('table.subquestion-list thead tr:last td:first', thisQuestion).addClass('inserted-header').append(insertedText);         // Column-specific classes         $('table.subquestion-list tr', thisQuestion).each(function(i) {             $('th, td', this).each(function(i) {                 $(this).addClass('column-'+i);             });         });          }); </script>

css:
Code:
<style type="text/css"> .custom-array table.subquestion-list thead td, .custom-array table.subquestion-list thead th {         border-bottom-width: 8px;         border-bottom-style: solid;                 border-bottom: 2px solid black;     } td.answer_cell_1        {    background-color: #D1ECD8;  } td.answer_cell_2        {    background-color: #DEF4D1;  } td.answer_cell_3        {    background-color: #FFECD8;  } td.answer_cell_4        {    background-color: #FFDEDE;  } .ls-header .column-0  {    background-color: maroon;} .ls-header .column-1  {    background-color: #2FA84F;   } .ls-header .column-2  {    background-color: #6BCB77;  } .ls-header .column-3  {    background-color: #FFA94D;   } .ls-header .column-4  {    background-color: #FF6B6B;   }    td.inserted-header {   font-weight: bold;   text-align: left;   vertical-align: middle !important;   color: white; } </style>

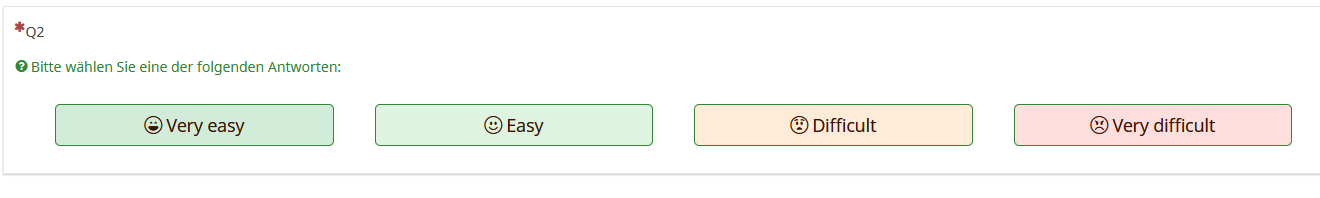

And as addendum the alternative display of Q2.

File Attachment:

File Name: limesurvey...91_J.lss
File Size:80.25 KB


Joffm


Volunteers are not paid.
Not because they are worthless, but because they are priceless
Last edit: 1 month 1 week ago by Joffm.

Please Log in to join the conversation.

More
1 month 1 week ago - 1 month 1 week ago #275169 by Joffm
Replied by Joffm on topic Can do this in Limesurevy

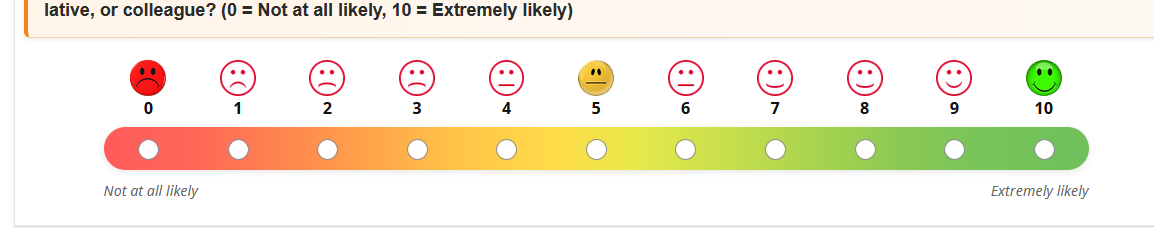

And to add emojis and numbers to Q1 just change the display to
Code:
                    <div><img src="smiley_red_40.png"><br/>0</div>                     <div><img src="smile1a.png"><br/>1</div>                     <div><img src="smile2a.png"><br/>2</div> ...


and change/add in .nps-numbers
Code:
   display: inline;     margin-bottom:30px;



Volunteers are not paid.
Not because they are worthless, but because they are priceless
Last edit: 1 month 1 week ago by Joffm.

Please Log in to join the conversation.

More
1 month 1 day ago #275191 by rajkumar_dms

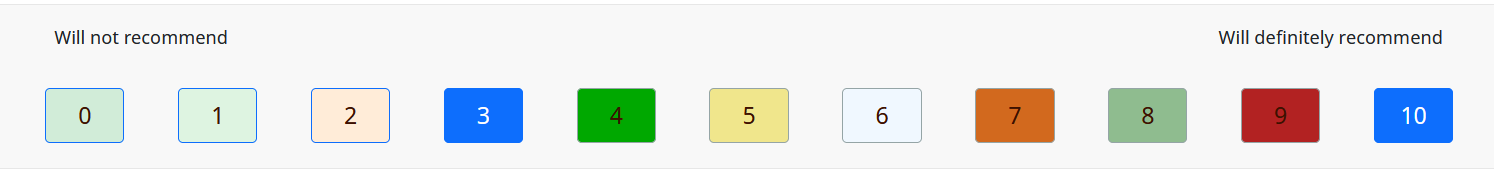

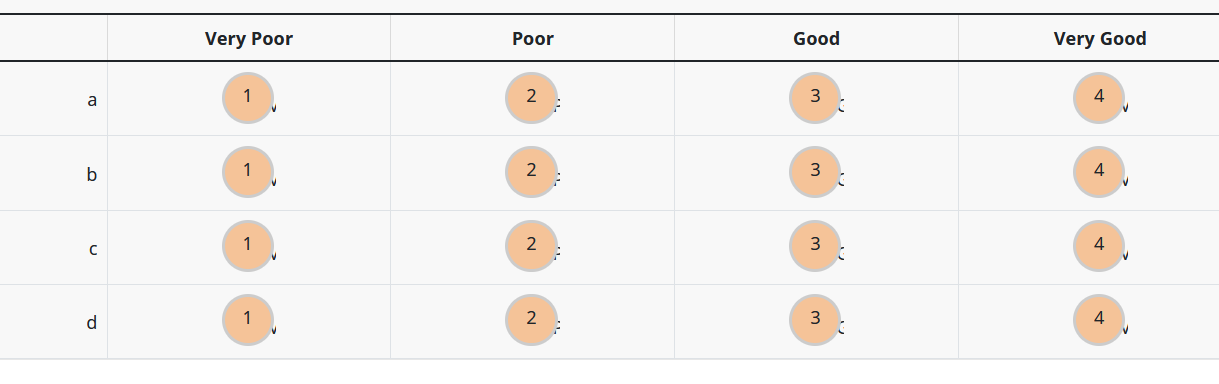

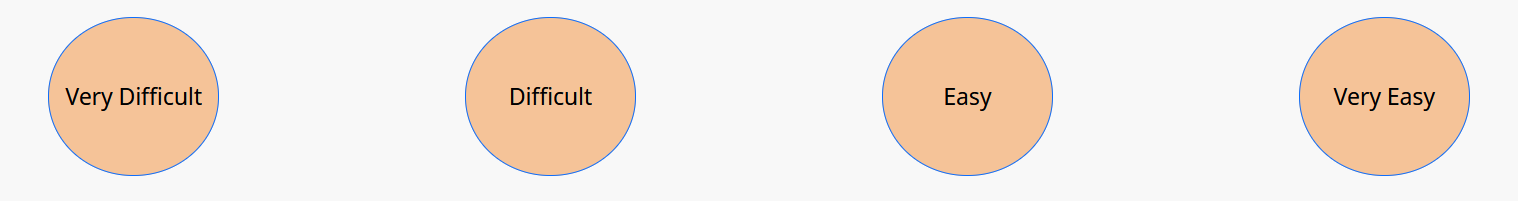

Can we design looks like attached image
if it feasibilty can please share the same

Please Log in to join the conversation.

More
3 weeks 5 days ago #275210 by rajkumar_dms
Hi Team,

Is there any update on this?

Please Log in to join the conversation.

More
2 weeks 1 day ago #275261 by Joffm
Replied by Joffm on topic Can do this in Limesurevy
1. You may try to adapt this
[url] forums.limesurvey.org/forum/can-i-do-thi...oice-question#252685 [/url]

2. Read this and adapt to your needs
forums.limesurvey.org/forum/design-issue...trap-bouton-question "> forums.limesurvey.org/forum/design-issue...trap-bouton-question

3. You already got this

Just adapt to 11 options


Volunteers are not paid.
Not because they are worthless, but because they are priceless

Please Log in to join the conversation.
