Changing the value/position of a slider using only buttons not clicking/dragging

Moathh
Topic Author
Offline
New Member

More

1 month 2 weeks ago #268554 by Moathh

Changing the value/position of a slider using only buttons not clicking/dragging was created by Moathh

LimeSurvey version: [LimeSurvey Cloud Version 6.10.0]
==================
Hi everyone,

I downloaded tpartner's "Slider Control Buttons for LimeSurvey 6.x" from GitHub, which is a great question theme. However, I am wondering if it is possible to disable moving the slider handle/changing the slider value with clicking/dragging, and only rely on the buttons to change the position and the value of the slider.

Thanks!
Moath

Please Log in to join the conversation.

tpartner
Offline
LimeSurvey Community Team

More

1 month 2 weeks ago #268632 by tpartner

Replied by tpartner on topic Changing the value/position of a slider using only buttons not clicking/dragging

You would need to modify the question theme, adding a new custom option to disable the sliders...

1) In /Slider-With-Controls/survey/questions/answer/multiplenumeric/config.xml, add an attribute like this this:

Code:

<attribute>
    <name>disabled</name>
    <category>Custom options</category>
    <sortorder>6</sortorder>
    <inputtype>buttongroup</inputtype>
    <options>
        <yes>Yes</yes>
        <no>No</no>
    </options>
    <default>no</default>
    <caption>Slider disabled</caption>
    <help>Disable the slider so the control buttons must be used.</help>
</attribute>

2) In /Slider-With-Controls/survey/questions/answer/multiplenumeric/rows/sliders/answer_row.twig, change this:

Code:

{% if slider_orientation is same as('horizontal') %}
    {% include '/survey/questions/answer/multiplenumeric/rows/sliders/horizontal_slider.twig' %}
{% endif %}
{% if slider_orientation is same as('vertical') %}
    {% include '/survey/questions/answer/multiplenumeric/rows/sliders/vertical_slider.twig' %}
{% endif %}

To this:

Code:

{% if slider_orientation is same as('horizontal') %}
    {% include '/survey/questions/answer/multiplenumeric/rows/sliders/horizontal_slider.twig' with {'sliderDisabled': question_template_attribute.disabled} %}
{% endif %}
{% if slider_orientation is same as('vertical') %}
    {% include '/survey/questions/answer/multiplenumeric/rows/sliders/vertical_slider.twig' with {'sliderDisabled': question_template_attribute.disabled} %}
{% endif %}

3) In /Slider-With-Controls/survey/questions/answer/multiplenumeric/rows/sliders/horizontal_slider.twig, change this:

Code:

{{ C.Html.textField( myfname ~ 'slid', dispVal ,{
    'class': 'form-control answer-item numeric-item d-none cs-slider-input',
    'id' : "answer" ~ myfname ~ "slid",
    'data-cs-separator' : sSeparator,
    'data-cs-step' : slider_step,
    'data-cs-max' : slider_max,
    'data-cs-min' : slider_min
}) }}

To this:

Code:

{{ C.Html.textField( myfname ~ 'slid', dispVal ,{
    'class': 'form-control answer-item numeric-item d-none cs-slider-input',
    'id' : "answer" ~ myfname ~ "slid",
    'data-bs-slider-enabled': sliderDisabled == 'yes' ? 'false' : 'true' ,
    'data-cs-separator' : sSeparator,
    'data-cs-step' : slider_step,
    'data-cs-max' : slider_max,
    'data-cs-min' : slider_min
}) }}

4) In /Slider-With-Controls/survey/questions/answer/multiplenumeric/rows/sliders/vertical_slider.twig, change this:

Code:

{{ C.Html.textField( myfname ~ 'slid', dispVal ,{
    'class': 'form-control answer-item numeric-item d-none',
    'id' : "answer" ~ myfname ~ "slid",
    'data-cs-separator' : sSeparator,
    'data-cs-step' : slider_step,
    'data-cs-max' : slider_max,
    'data-cs-min' : slider_min
}) }}

To this:

Code:

{{ C.Html.textField( myfname ~ 'slid', dispVal ,{
    'class': 'form-control answer-item numeric-item d-none cs-slider-input',
    'id' : "answer" ~ myfname ~ "slid",
    'data-bs-slider-enabled': sliderDisabled == 'yes' ? 'false' : 'true' ,
    'data-cs-separator' : sSeparator,
    'data-cs-step' : slider_step,
    'data-cs-max' : slider_max,
    'data-cs-min' : slider_min
}) }}

5) In Configuration --> Global -- General, clear the assets cache.

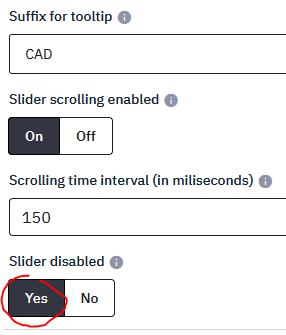

6) Set the new "Slider disabled" question setting to "Yes".

Cheers,
Tony Partner
Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.

The following user(s) said Thank You: DenisChenu

Please Log in to join the conversation.

Moathh
Topic Author
Offline
New Member

More

1 month 3 days ago #268752 by Moathh

Replied by Moathh on topic Changing the value/position of a slider using only buttons not clicking/dragging

Hi Tony,

Thanks for your reply. I do not have rights to perform these changes from within LimeSurvey and I am still waiting for my university to decide if this is possible.

Meanwhile, I implemented the changes on the files themselves and reimported the question theme, but unfortunately, it did not work this way. It does give the option to disable the slider but the slider can still be moved by dragging.

Is there another way the changes can take effect other than making the edits from within LimeSurvey and clear the assets cache?

Thanks again for the support.

Cheers,
Moath

Please Log in to join the conversation.

tpartner
Offline
LimeSurvey Community Team

More

1 month 3 days ago #268774 by tpartner

Replied by tpartner on topic Changing the value/position of a slider using only buttons not clicking/dragging

Can you attach a zipped copy of your question theme?

Cheers,
Tony Partner
Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.

Please Log in to join the conversation.

Moathh
Topic Author
Offline
New Member

More

1 month 2 days ago #268777 by Moathh

Replied by Moathh on topic Changing the value/position of a slider using only buttons not clicking/dragging

File Attachment:

File Name: Slider-Wit...rols.zip
File Size:66 KB

Here is the file. Thanks again!

Best,
Moath

Please Log in to join the conversation.

tpartner
Offline
LimeSurvey Community Team

More

1 month 1 day ago - 1 month 1 day ago #268798 by tpartner

Replied by tpartner on topic Changing the value/position of a slider using only buttons not clicking/dragging

Try this...

In /Slider-With-Controls/survey/questions/answer/multiplenumeric/rows/sliders/horizontal_slider.twig and /Slider-With-Controls/survey/questions/answer/multiplenumeric/rows/sliders/vertical_slider.twig, change:

Code:

data-bs-slider-enabled

".

To:

Code:

data-slider-enabled

".

Here is a working survey - partnersurveys.com/limesurvey6x/index.php/444536?lang=en

Cheers,
Tony Partner
Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.

Last edit: 1 month 1 day ago by tpartner.

The following user(s) said Thank You: DenisChenu, Moathh

Please Log in to join the conversation.

Moathh
Topic Author
Offline
New Member

More

1 month 6 hours ago #268840 by Moathh

Replied by Moathh on topic Changing the value/position of a slider using only buttons not clicking/dragging

It worked like a charm, thanks, Tony! I appreciate it 🙏

Cheers,
Moath
