Hello Dear Community,

So we are trying to have an assessment in our survey. It basically stress level assessment. At the end of the survey we want to visualize the results of the assessment as speedometer or bar kind of thing. Now is there any possibility to do that? or there just a text message output available? I would really appreciate any help in this regard.

Hi,
was there any reason that you did not answer the questions at the beginning about your LimeSurvey version, where it is hosted, etc?

Of course you can do that.
Use Expression Manager/Script to calculate your score with any of the implemented functions.
[url] www.limesurvey.org/manual/ExpressionScri...mplemented_functions [/url]
Usually it is sufficient to use the codes of the answer options (of course, numerical codes), like this (with some weighting added):
{sum(Q1.NAOK,2*Q2_SQ001.NAOK,0.3*Q3.NAOK...)}

But you also may use assessment values (if you want to have negative values, or the same values for two or three answer options in a question)
{sum(Q1.valueNAOK,2*Q2_SQ001.valueNAOK,0.3*Q3.valueNAOK...)}
Read here how to access them
[url] www.limesurvey.org/manual/ExpressionScri...#Access_to_variables [/url]

Then you may display ony text, or a chart like this (here the library "highcharts.com" is used)

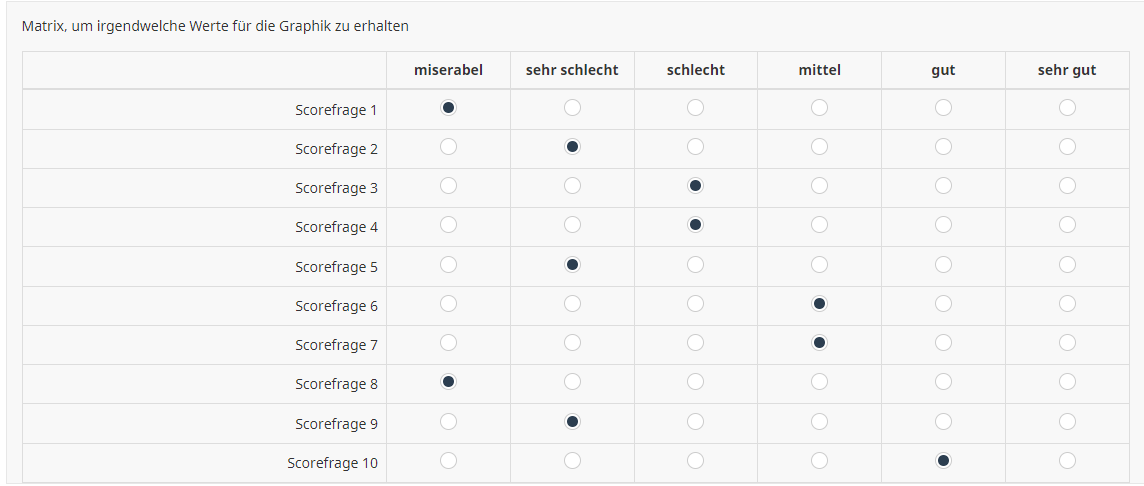

An array to get some values

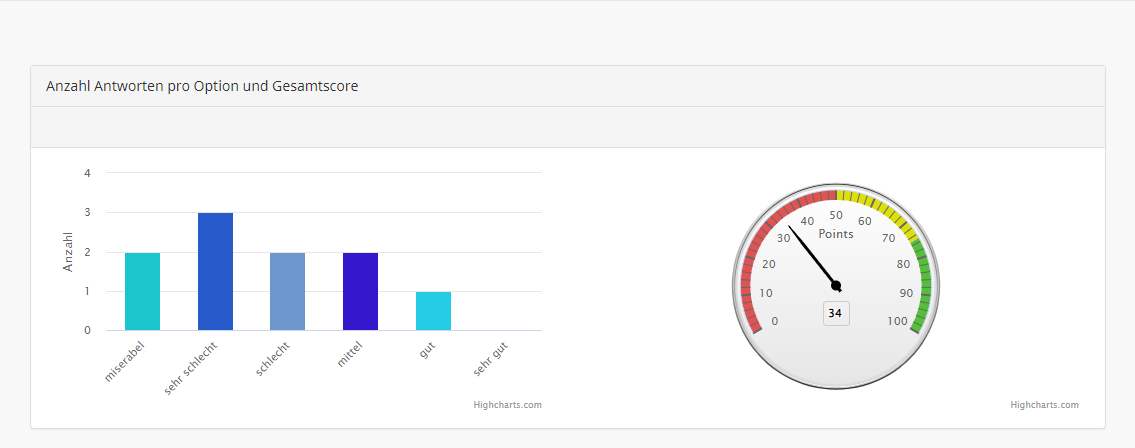

and a bar chart and something like your speedometer.


Please give more detailled informations, best a lss export of your survey.

Joffm



Hi Joffm, Thanks for your reply and sorry for missing out the information. The version of the LimeSurvey is:LimeSurvey Community EditionVersion 5.3.16 220523and it is installed on our web server. Unfortunately I can provide lss export file because the survey has not been deployed yet. However, it is a self-test to determine the stress level. At the end of survey participants should get results something like that speedometer or Bar (in the attached file there is also some criteria explained)

As you seem to speak German,
read my "Tutorial 3: Gimmicks,..." in the German part of the forum.
Should be on the first or second page.

Joffm
