Move Radio Buttons into HTML Table

  • tomschuette
  • tomschuette's Avatar Topic Author
  • Offline
  • New Member
  • New Member
More
1 year 9 months ago #229940 by tomschuette
Move Radio Buttons into HTML Table was created by tomschuette
Please help us help you and fill where relevant:
Your LimeSurvey version: [3.27.19+210928]
Own server or LimeSurvey hosting:
Survey theme/template:
==================
Hi everone,

The following code is inside an array type question with subquestion SQ001 and answer options A1-A3.

So this code creates a table, where on the last row (actually column, but it's transposed via CSS) three cells called "Button 1", "Button 2", "Button 3" are created.
What I want to do now is to instead insert the radio buttons A1-A3 into these cells.

I read through the forum and found this solution ([url] forums.limesurvey.org/forum/design-issue...628-add-radio-button [/url]), but I can't make it work for me. I would like it to be done within the for loop if that's possible (see comment in code). But I am open to any other solution.

I have also added my survey as an lss file.

Thank you in advance!



Code:
<table id="dce_table">
</table>
<script type="text/javascript" charset="utf-8">
    $(document).on('ready pjax:scriptcomplete',function(){


        var attributes = ["Attribute 1", "Attribute 2", "Attribute 3","Attribute 4", "Attribute 5"];
        var myTASK = "2";

        var alternatives = ["Option 1","Option 2","Option 3"];
        var myVERSION = "2"; // replace with random number (1 to 'total number of versions') later on
        var h = 0;
        var f = 0;

        var myData = [
            { "Version":"1","Task":"1","Concept":"1","Att1":"Banane","Att2":"5€","Att3":"27,56","Att4":"$$$","Att5":"50°C"},
            { "Version":"1","Task":"1","Concept":"2","Att1":"Karotte","Att2":"10€","Att3":"58,87","Att4":"€€€","Att5":"165°F"},
            { "Version":"1","Task":"1","Concept":"3","Att1":"Vanilleeis","Att2":"10€","Att3":"58,87","Att4":"€€€","Att5":"165°F"},
            { "Version":"1","Task":"2","Concept":"1","Att1":"Birne","Att2":"5€","Att3":"27,56","Att4":"$$$","Att5":"50°C"},
            { "Version":"1","Task":"2","Concept":"2","Att1":"Sellerie","Att2":"10€","Att3":"58,87","Att4":"€€€","Att5":"165°F"},
            { "Version":"1","Task":"2","Concept":"3","Att1":"Obstsalat","Att2":"10€","Att3":"58,87","Att4":"€€€","Att5":"165°F"},
            { "Version":"2","Task":"1","Concept":"1","Att1":"Apfel","Att2":"5€","Att3":"27,56","Att4":"$$$","Att5":"50°C"},
            { "Version":"2","Task":"1","Concept":"2","Att1":"Gurke","Att2":"10€","Att3":"58,87","Att4":"€€€","Att5":"165°F"},
            { "Version":"2","Task":"1","Concept":"3","Att1":"Mousse au Chocolat","Att2":"10€","Att3":"58,87","Att4":"€€€","Att5":"165°F"},
            { "Version":"2","Task":"2","Concept":"1","Att1":"Blaubeeren","Att2":"5€","Att3":"27,56","Att4":"$$$","Att5":"50°C"},
            { "Version":"2","Task":"2","Concept":"2","Att1":"Zucchini","Att2":"10€","Att3":"58,87","Att4":"€€€","Att5":"165°F"},
            { "Version":"2","Task":"2","Concept":"3","Att1":"Erdbeerjoghurt","Att2":"10€","Att3":"58,87","Att4":"€€€","Att5":"165°F"}
        ]

        var col = ;
        col.push("Option");
        for (var key in myData[0]) {
            if (key != "Version" &amp;&amp; key != "Task" &amp;&amp; key != "Concept") {
                col.push(key);
                }
        }
          col.push("Buttons");


        var table = document.createElement("table");

        var tr = table.insertRow(-1);

        for (var i = 0; i < col.length; i++) {
          if (i === 0) {
            var th = document.createElement("th");
            th.innerHTML = "Option";
            tr.appendChild(th);
              }
          else if (i < col.length-1) {
            var th = document.createElement("th");
            th.innerHTML = attributes[i-1];
            tr.appendChild(th);
              }
          else {
            var th = document.createElement("th");
            th.innerHTML = "Buttons go here";
            tr.appendChild(th);
            }
        }

        for (var i = 0; i < myData.length; i++) {
             var x = 1;
            if (myData[i]["Version"] === myVERSION &amp;&amp; myData[i]["Task"] === myTASK) {

              tr = table.insertRow(-1);

              for (var j = 0; j < col.length; j++) {

                      if (col[j] === "Buttons") {
                          var createButtonField = tr.insertCell(-1);
                        createButtonField.innerHTML = "Button" + x; // What I want to do is to insert A"x" in here, so the radio-button for A1 in the first cell, A2 in the second cell and so on
                          x += 1;
                      }
                      else if (j == 0) {
                        var createLabel = tr.insertCell(-1);
                        createLabel.innerHTML = alternatives[f];
                        f += 1;
                      }

                      else {
                          var tabCell = tr.insertCell(-1);
                          tabCell.innerHTML = myData[i][col[j]];
                      }
              }
            }
        }

        var divContainer = document.getElementById("dce_table");
        divContainer.innerHTML = "";
        divContainer.appendChild(table);


    });


</script>
<style type="text/css">#dce_table {
      margin: auto;
      border: 2px solid black;
      padding: 10px;
  }
  #dce_table tr {
    border: 1px solid black;
    display: inline-block;
    float: left;
  }
  #dce_table th {
    border: 1px solid black;
    display: block;
    padding: 10px;
  }
  #dce_table td {
    border: 1px solid black;
    display: block;
    padding: 10px;
  }
</style>[/i][/i][/i]


Please Log in to join the conversation.

  • Joffm
  • Joffm's Avatar
  • Offline
  • LimeSurvey Community Team
  • LimeSurvey Community Team
More
1 year 9 months ago - 1 year 9 months ago #229941 by Joffm
Replied by Joffm on topic Move Radio Buttons into HTML Table
In your last thread I wondered why you display the buttons in the last column.

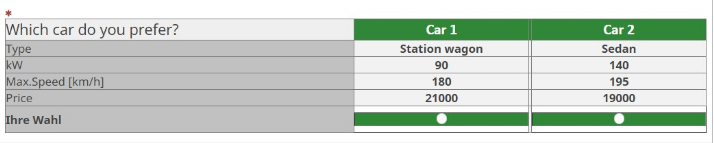

Here a transposed solution (buttons in the last row)
You may search the forum for the "apple-banana" example.
Some kind to show a conjoint question.
Here
[url] forums.limesurvey.org/forum/can-i-do-thi...ions-in-a-box#194418 [/url]
and here
[url] forums.limesurvey.org/forum/design-issue...nswer-options#215025 [/url]

But there are more .

And you may have a look at my "Tutorial 3:Gimmicks...", Chapter 11 in the German section.
[url] forums.limesurvey.org/forum/german-forum...ielereien-25-06-2022 [/url]



Joffm

Volunteers are not paid.
Not because they are worthless, but because they are priceless
Last edit: 1 year 9 months ago by Joffm.
