Please help us help you and fill where relevant:Your LimeSurvey version: Version 3.28.9+220503Own server or LimeSurvey hosting: Own
Survey theme/template: Default
==================
I'm struggling with validation of a Array type question:

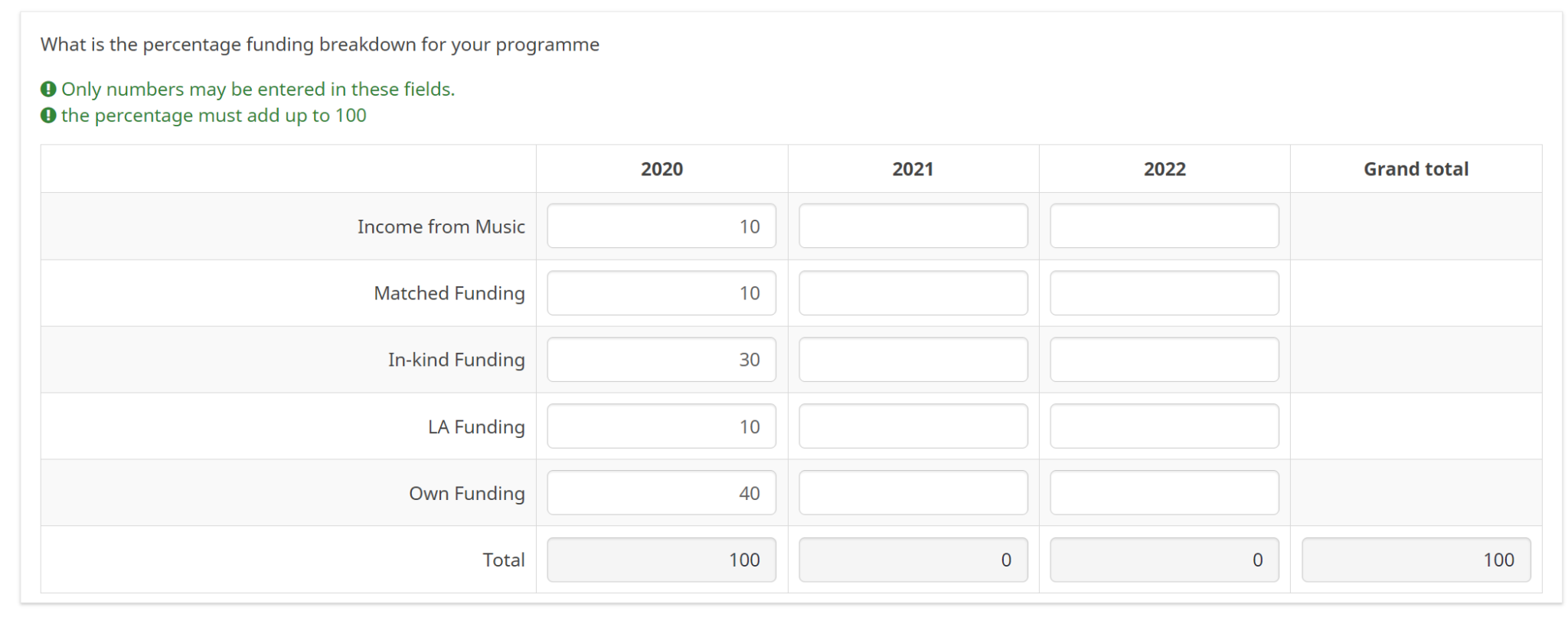

The idea is that each column can add up to no more than 100 (eg 100%)

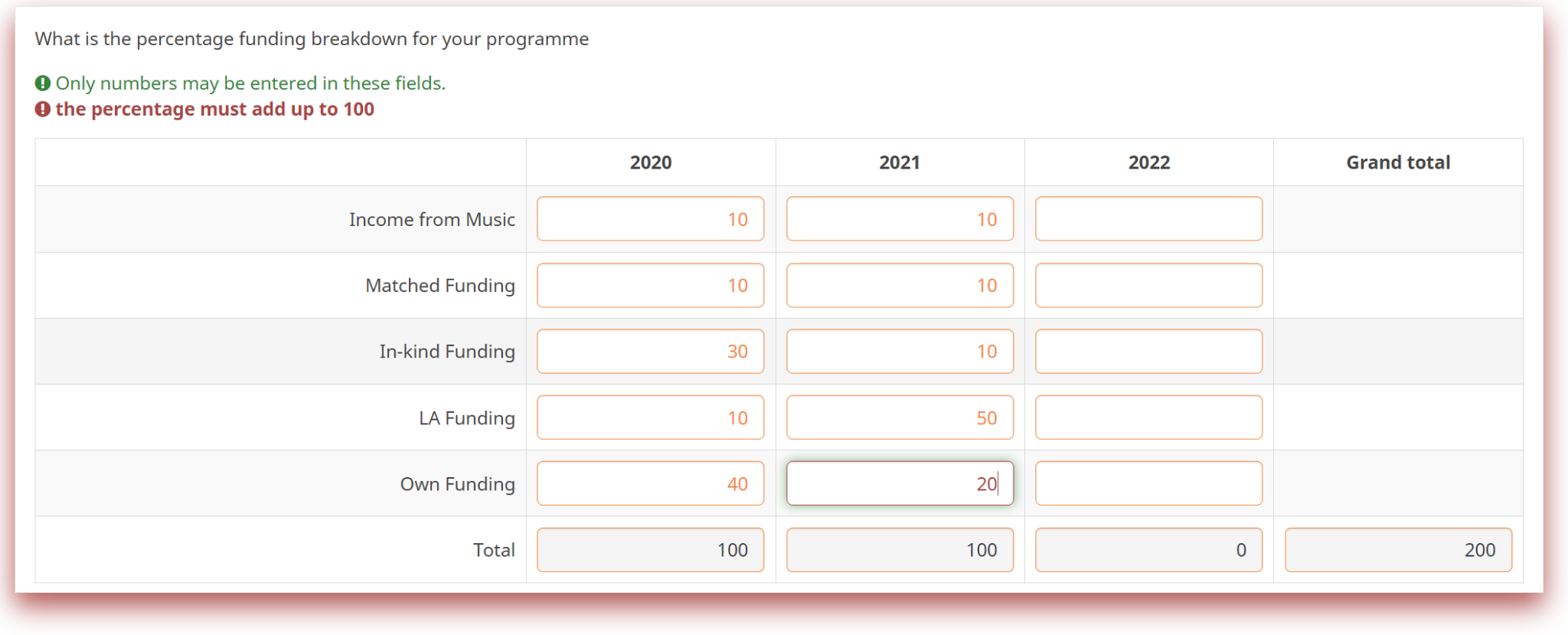

But the validation I have set is counting the column total rather than the individual column so this happens:



This is the Subquestion validation equation

sum(self.sq_1.NAOK)<=100 AND sum(self.sq_2.NAOK)<=100 AND sum(self.sq_3.NAOK)<=100

I don't see how to alter this to make it apply only on a per column basis.

I would not display the Grand Total in the finished survey as it would make no sense but it helps explain what is going wrong I think!

REX


Hi,
you did not show the codes of the two scales.

I assume you used "SQ001", "SQ002",... for the y-scale?
Then "self.sq_1" takes the SQ001 row into acount as well, (the code contains a "1").

So ple4ase show your coding.

Joffm

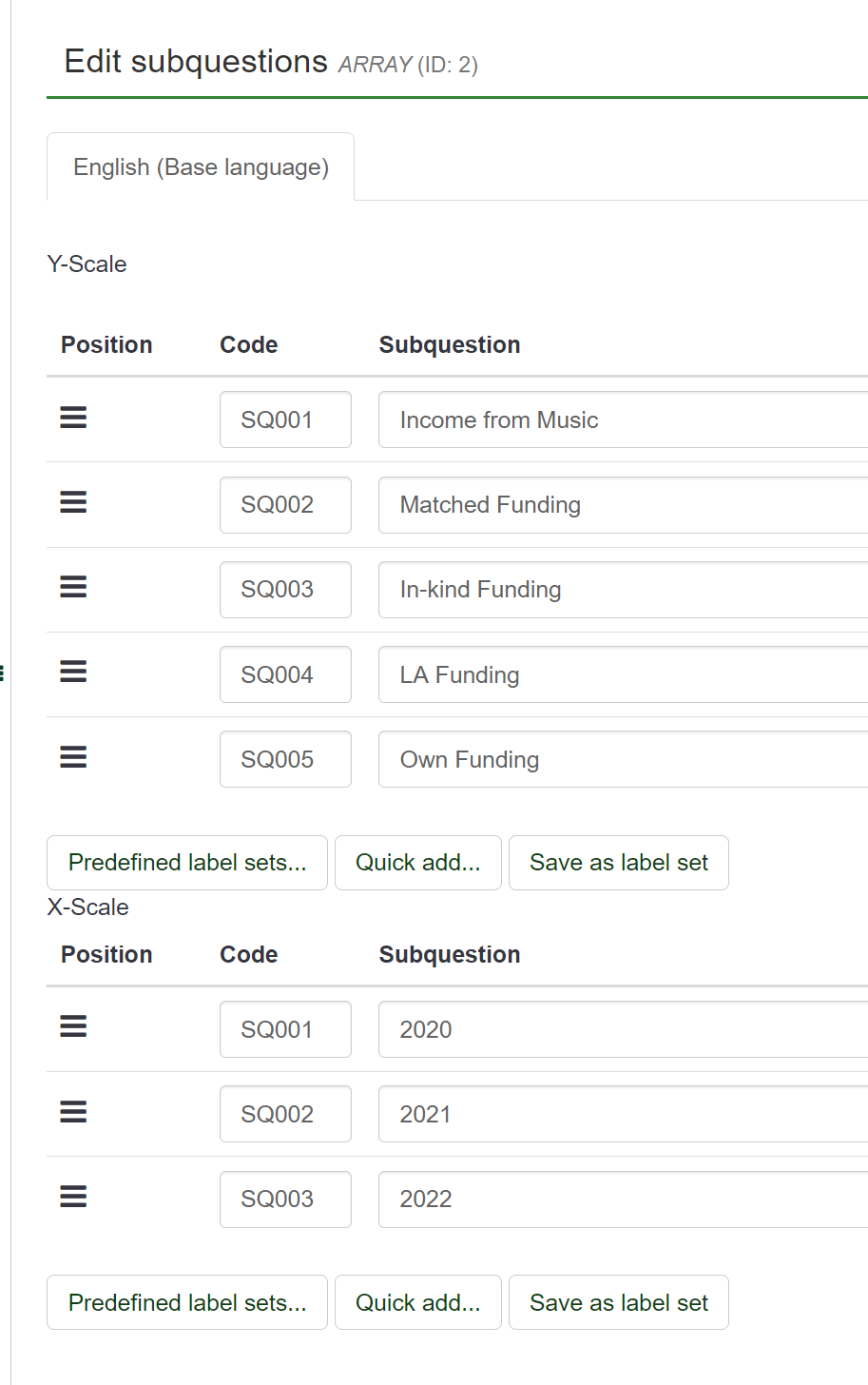

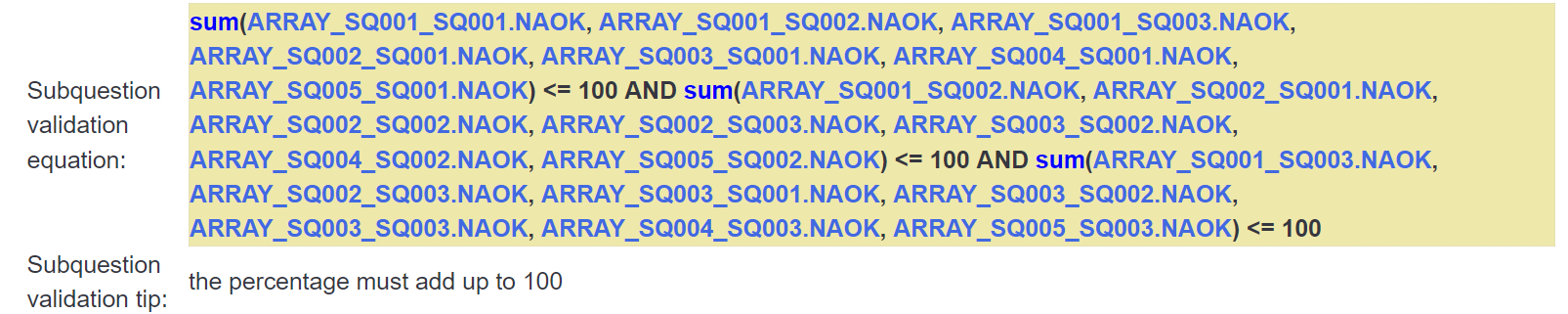

This is what the Subquestion validation equation look like



This i think shows that it is counting across the columns, rather than just a single column. But I've no idea how to change this !

Attaching the question in LSQ format

Hi Jeff
I'd set up the questions very quickly and I can see that they've been allocated the same codes



for X scale and Y scale.

Rex

Of course, with your coding you can't distinguish between rows and columns.
I think you were a bit confused how this "self.sq_..." works.
As you saw above every QCode that contains a "1" is summed up; like your first sum
sum(self.sq_1):
sum(array_SQ001_SQ001, array_SQ001_SQ002, array_SQ001_SQ003, array_SQ002_SQ001, array_SQ003_SQ001, array_SQ004_SQ001, array_SQ005_SQ001)

These variables "self" and "that" are very mighty; but you have to think about a suitable coding.

Solution:
Code your y-axis "Y01", "Y02", "Y03",...
your x-axis "X01", "X02", "X03",...

Now the validation is
sum(self.sq_X01.NAOK)<=100 AND sum(self.sq_X02.NAOK)<=100 AND sum(self.sq_X03.NAOK)<=100

Joffm

Many thanks for your help. That now works.

You were right, I did not understand how self.sq_.. works!
