Please help us help you and fill where relevant:
Your LimeSurvey version: url=https://localhost/limesurvey/index.php/questionAdministration/create/surveyid/272118/gid/46#modalSystemInformation]Version 5.3.4+220309[/url
Own server or LimeSurvey hosting: Own server
Survey theme/template: fruit
==================
I designed a survey that needs the participants to choose one picture in every group. Every picture stands for a keyword. But the participants can not see it.
At the end of the survey, the participants can see their result: A Keyword List.
Extra function: the participants can adjust the order of the keyword list from important to unimportant. And delete some words impropriety.

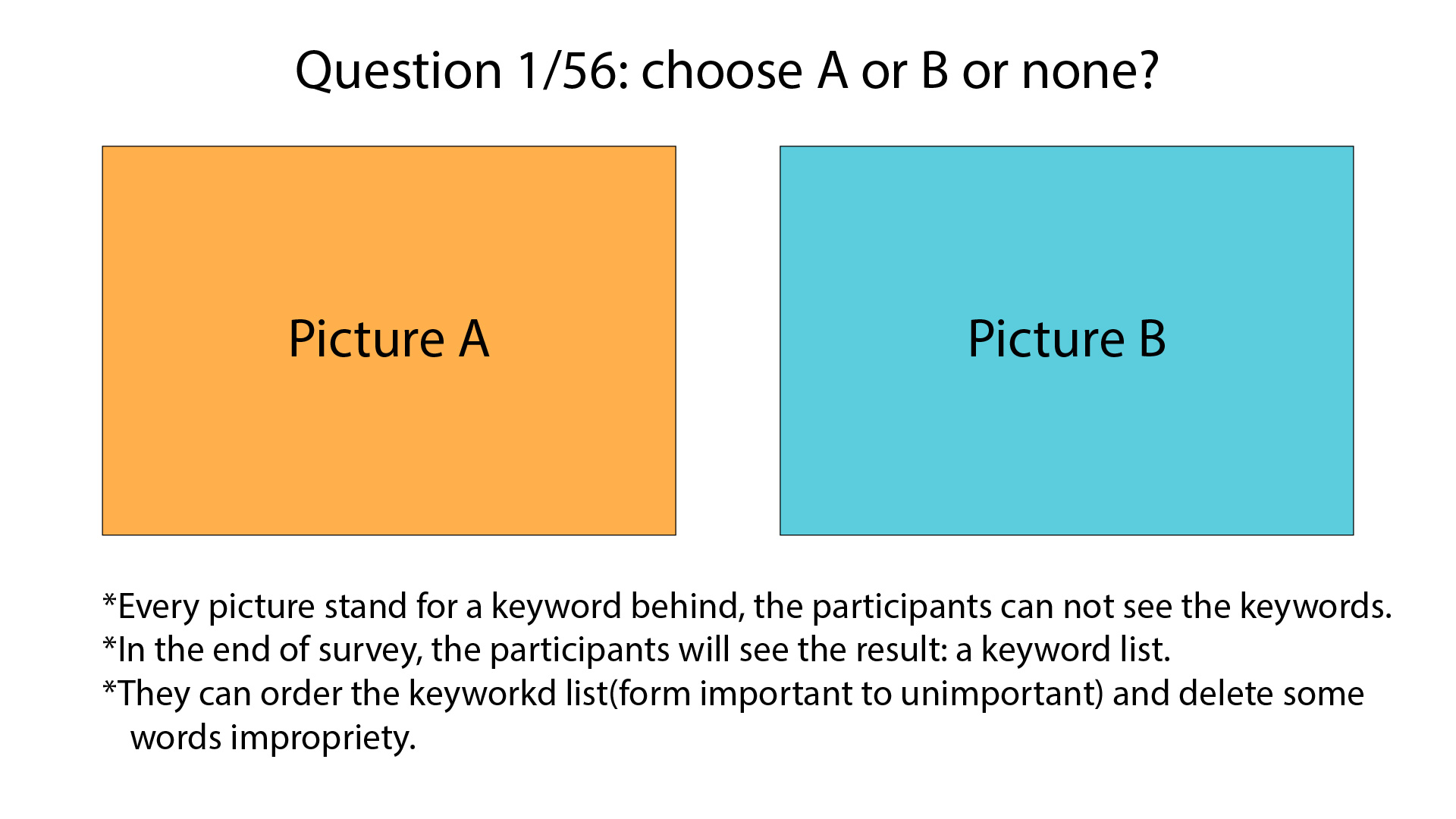

I draw an illustration for better understanding:


Is that possible to do it with LimeSurvey, Thanks for all helpers!


Of course,
which type of question do you want to use to show the images?
"list(radio) with bootstrap-button layout"
"image-select"
or a variation of this
[url] forums.limesurvey.org/forum/can-i-do-thi...dels?start=15#170368 [/url]

Nevertheless at the end you may display a ranking question to order your keywords.
You enter the keywords by ExpressionScript, like
{if(Q1==1,"keyword1", "keyword2")}
{if(Q2==1,"keyword3", "keyword4")}

The best is always to attach a small sample survey with these questions as lss export.

Joffm

Joffm

Yes, I think the best experience for the participants is a radio to check and press the next button.


I have read the page you shared. I don't know the JS code so well, I try to make survey base on the lss file in the post.
1. I find the KCfinder can not work on my Synology with own domain. So I can not upload the picture. I tried install LS on localhost, it works, I don't know what's the problem.
2. The default check is second picture, I think it is JS code set. But I don't how to cancel the default check.

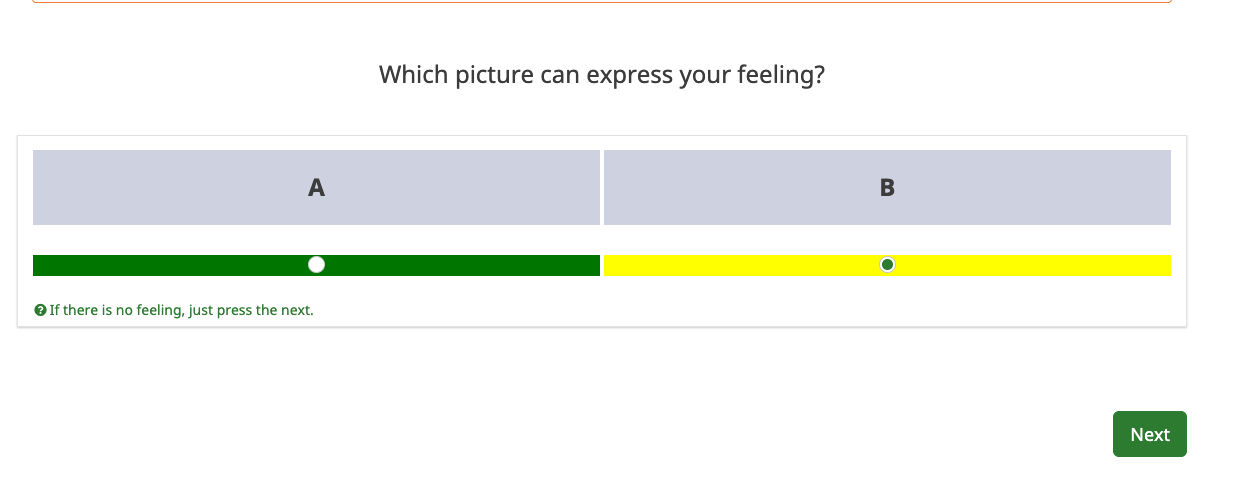

3. The interface looks right, but I don't know how to link picture with keyword. Anyone can guide more precisely?

I share the Limesurvey LLS fils here. Hope you can understand my point, the question is 3, but in the real test will 56 questions groups.

I find the KCfinder can not work on my Synology with own domain. So I can not upload the picture. I tried install LS on localhost, it works, I don't know what's the problem.

Use something else to upload to any directory of your domain (ftp-client, or...)

2. The default check is second picture, I think it is JS code set. But I don't how to cancel the default check.

This is because you have only one answer option.
The second answer (the checked one) is the answer option "no answer".
If you have two options you need two answer options. And set "show no answer" to "NO" in "Presentation".
Or better: Make the questions mandatory. With question text "Which picture can express your feeling best?"

3. The interface looks right, but I don't know how to link picture with keyword. Anyone can guide more precisely?

I showed you already how the answer options of your ranking questions look like.
With mandatory questions:
{if(Q01==1,"keyword1","keyword2")}

If your questions are not mandatory it is more difficult.
You have to create a hidden multiple question, with an equation set the subquestions to "Y", if any of the images was selected (leave it blank if no image was selected), and use this multiple question as array filter of the ranking question.

And as you said, the ranking question can be "non-mandatory".

Joffm


Here a sample survey with both:
1. ranking 1, if the questions are mandatory
2. ranking 2, if the questions are not mandatory



Joffm

Thank you so much Joffm!
There is no word to express my appreciate about your help.

After read your .lss file, I know what you mean by {if(Q01==1,"keyword1","keyword2")}
I want to learn more and improve the test:
You said that it is best to make the questions mandatory, I agree too. Because I find that when participants choose one photo, it is impossible to cancel it（make it back to nothing chosen.）
So, I think it best to have an option like "none of them" or "have no feeling", and set all questions mandatory, and the participants can cancel what they chosen.

Do you have any suggestion to do it? I am thinking about the best interface for it but still nothing can convince me.

Thank you so much! AGAIN!



If you want to do this, just add the column in the HTML table and add an answer option
Here a similar approach (only to show the question)
[url] forums.limesurvey.org/forum/can-i-do-thi...array-numbers#223168 [/url]

But this is my opinion:
A lot of people are too head controlled, or think they are, or think they have to be
They think they can't allow feelings.
So I would force an election.
"Among the blind, the one-eyed man is king"
Such tests serve to magnify even small differences.

Joffm


"Among the blind, the one-eyed man is king"
You are a philosopher!

OK, I think I have been persuaded by you. Let's improve the test in practice.
Thanks!

Hi Joffm,
There is another question.
Is it possible to show the result keywords list?
Not ranking, just see what he just chosen as a keywords list. I tried the option "Participants may print answers: on". but it is not a keyword list but only picture list(question list).
Thanks！

{if(Q01==1,"keyword1","keyword2")}
I finally understand the meaning of "Q01==1"
I change the answer code to 1\2\3…， then it show up the result.

Thanks!!! Joffm

Anyone can tell me how to learn the code skill in limeurvery?
It looks similar with Excel, but I have no clue how to learn more!

To learn:
Read the manual, especially about question types and ExpressionScript.
Study the sample surveys
You find them here
[url] www.limesurvey.org/manual/ExpressionScript_sample_surveys/en [/url]
but also in the demo installation of LimeSurvey
[url] demo.limesurvey.org/admin [/url]

Is it possible to show the result keywords list?

Who is going to see this list?
The participant?
You may use the function "list()" and put it into the end page.
Use the same IF statement.
{list(if(Q1==1,keyword1","keyword2"),if(Q2==1,"keyword3","keyword4")...)}

Joffm
