3 part slider (multi numeric)
- wingmorgan
- Topic Author
- Offline
- New Member
Less
More
3 years 4 months ago #210047
by wingmorgan
3 part slider (multi numeric) was created by wingmorgan
Hi,
Trying to setup question: What is the approx % split of your customers? with three 'blocks' "under 30", 30-40, "over 40".
The desire is to have a multi-way slider (bad ascii art).
From seiyria.com/bootstrap-slider/ - "Example 12: Coloring the low and high track segments." Looks promising for the underlying CSS rendering.
Any suggestions for an example / method for hooking this together with the multi-numeric question type with slider options (I'm guessing with custom.css etc).
Thanks,
Carl / Wing
(Using hosted limequery.net service / versions etc)
[ Bonus points I would love a dynamic pie chart visualisation, rather than linear - but that is a different thread / request ]
Trying to setup question: What is the approx % split of your customers? with three 'blocks' "under 30", 30-40, "over 40".
The desire is to have a multi-way slider (bad ascii art).
Code:
20% 30% 50% |-- <30 --M---- 30-40 ------M------------- 40+ ---------------|
From seiyria.com/bootstrap-slider/ - "Example 12: Coloring the low and high track segments." Looks promising for the underlying CSS rendering.
Any suggestions for an example / method for hooking this together with the multi-numeric question type with slider options (I'm guessing with custom.css etc).
Thanks,
Carl / Wing
(Using hosted limequery.net service / versions etc)
[ Bonus points I would love a dynamic pie chart visualisation, rather than linear - but that is a different thread / request ]
The topic has been locked.
- tpartner
- Offline
- LimeSurvey Community Team
Less
More
- Posts: 10119
- Thank you received: 3598
3 years 4 months ago - 3 years 4 months ago #210079
by tpartner
Cheers,
Tony Partner
Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.
Replied by tpartner on topic 3 part slider (multi numeric)

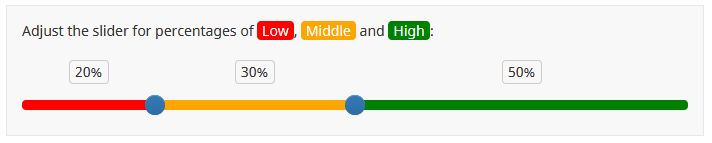

LimeSurvey does not offer a range slider but you could insert a custom range slider.
1) Create a multiple-numeric question with 3 sub-questions. Do not implement the LimeSurvey slider.
2) Add the following script to the source of the question. This will hide the answer inputs, insert a range slider and populate the hidden answer inputs with "low", "middle" and "high" percentages.
3) Add the following styles to the question source:
Sample survey attached:
1) Create a multiple-numeric question with 3 sub-questions. Do not implement the LimeSurvey slider.
2) Add the following script to the source of the question. This will hide the answer inputs, insert a range slider and populate the hidden answer inputs with "low", "middle" and "high" percentages.
Code:
<script type="text/javascript" charset="utf-8"> $(document).on('ready pjax:scriptcomplete',function(){ // Identify this question var qID = '{QID}'; var thisQuestion = $('#question'+qID); // Path to the LS installation root var rootPath = location.pathname.split('index.php')[0]; // Hide the answer inputs $('.subquestion-list', thisQuestion).hide(); // Insert an input for the slider $('.answer-container', thisQuestion).prepend('<div class="inserted-slider-wrapper"><input id="range'+qID+'" type="text" value="" /></div>'); // Include the Bootstrap slider styles $('head').append('<link rel="stylesheet" href="'+rootPath+'assets/packages/bootstrap/plugins/slider/css/bootstrap-slider.css" type="text/css" />'); // Get the Bootstrap slider script $.getScript(rootPath+'assets/packages/bootstrap/plugins/slider/bootstrap-slider.js') .done(function( script, textStatus ) { //Initial slider values var lowValue = 33; var highValue = 67; var emptyInputs = $(':text.form-control', thisQuestion).filter(function() { return $.trim($(this).val()) == ''; }); if(emptyInputs.length == 0) { lowValue = Number($(':text.form-control:eq(0)', thisQuestion).val()); highValue = Number($(':text.form-control:eq(0)', thisQuestion).val()) + Number($(':text.form-control:eq(1)', thisQuestion).val()); } // Initate the range slider $('#range'+qID+'').slider({ min: 0, max: 100, step: 1, range: true, value: [lowValue,highValue] }) // Listener on the slider .on('change', function(e) { var lowPercent = round((e.value.newValue[0]/100)*100); var highPercent = round(100 - (e.value.newValue[1]/100)*100); var middlePercent = round(100 - (highPercent+lowPercent)); // Load the answer inputs $(':text.form-control:eq(0)', thisQuestion).val(lowPercent).trigger('keyup'); $(':text.form-control:eq(1)', thisQuestion).val(middlePercent).trigger('keyup'); $(':text.form-control:eq(2)', thisQuestion).val(highPercent).trigger('keyup'); handleTooltips(); }); // Insert some custom tooltips $('.slider-track > div', thisQuestion).append('<div class="inserted-tooltip hidden" />'); handleTooltips(); }) .fail(function( jqxhr, settings, exception ) { console.log( exception ); }); // A function to handle the custom tooltips function handleTooltips() { $(':text.form-control', thisQuestion).each(function(i) { if($(this).val() != '') { $('.inserted-tooltip:eq('+i+')', thisQuestion).text($(this).val()+'%').removeClass('hidden'); } }); } }); </script>
3) Add the following styles to the question source:
Code:
<style type="text/css"> .inserted-slider-wrapper .slider.slider-horizontal { width: 100%; margin: 40px 0 20px 0; } .inserted-slider-wrapper .slider-track, .inserted-slider-wrapper .slider-selection { box-shadow: none; background: transparent none; } .inserted-slider-wrapper .slider-track-low { background: red; } .inserted-slider-wrapper .slider-selection { background: orange; } .inserted-slider-wrapper .slider-track-high { background: green; } .inserted-slider-wrapper .inserted-tooltip { position: absolute; top: -40px; left: 50%; padding: 0 5px 2px 5px; border: 1px solid #ccc; border-radius: 4px; transform: translateX(-50%); } .inserted-slider-wrapper .tooltip { display: none !important; } </style>
Sample survey attached:
Cheers,
Tony Partner
Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.
Last edit: 3 years 4 months ago by tpartner.
The following user(s) said Thank You: wingmorgan
The topic has been locked.
- wingmorgan
- Topic Author
- Offline
- New Member
Less
More
- Posts: 4
- Thank you received: 0
3 years 4 months ago #210082
by wingmorgan
Replied by wingmorgan on topic 3 part slider (multi numeric)
Thanks Tony - looks really promising....
When I pulled download latest LS CE 3.25.6 and did a local install from scratch (Ubuntu Bionic based) everything works just fine - very pretty.....
However, when I tried importing your LSS using on the SaaS option (currently 3.25.4) it doesn't seem to render the bars - my limited digging shows 404s for
Which feels like a plugin / theme based mis-match, but I'm flailing in the dark somewhat. I think I might have cut/paste from other support links wrt bootstrap-slider.js without realising dependencies / subtleties....
Do I just need to wait for the back end to be updated or am I off in the weeds trying to use limequery.net for this?
Many thanks,
Carl
When I pulled download latest LS CE 3.25.6 and did a local install from scratch (Ubuntu Bionic based) everything works just fine - very pretty.....
However, when I tried importing your LSS using on the SaaS option (currently 3.25.4) it doesn't seem to render the bars - my limited digging shows 404s for
Code:
/375771assets/packages/bootstrap/plugins/slider/bootstrap-slider.js?_=1610068553035:1375771?newtest=Y&lang=en:424 bootstrap-slider.css:1
Which feels like a plugin / theme based mis-match, but I'm flailing in the dark somewhat. I think I might have cut/paste from other support links wrt bootstrap-slider.js without realising dependencies / subtleties....
Do I just need to wait for the back end to be updated or am I off in the weeds trying to use limequery.net for this?
Many thanks,
Carl
The topic has been locked.
- tpartner
- Offline
- LimeSurvey Community Team
Less
More
- Posts: 10119
- Thank you received: 3598
3 years 4 months ago - 3 years 4 months ago #210095
by tpartner
Cheers,
Tony Partner
Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.
Replied by tpartner on topic 3 part slider (multi numeric)
Try replacing this:
With an absolute path to your LimeSurvey installation root:
Code:
// Path to the LS installation root var rootPath = location.pathname.split('index.php')[0];
With an absolute path to your LimeSurvey installation root:
Code:
// Path to the LS installation root var rootPath = 'http://yourDomaine/LimeSurvey/';
Cheers,
Tony Partner
Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.
Last edit: 3 years 4 months ago by tpartner.
The topic has been locked.
- tpartner
- Offline
- LimeSurvey Community Team
Less
More
- Posts: 10119
- Thank you received: 3598
3 years 2 months ago #212294
by tpartner
Cheers,
Tony Partner
Solutions, code and workarounds presented in these forums are given without any warranty, implied or otherwise.
Replied by tpartner on topic 3 part slider (multi numeric)
Here is a custom question theme for a range slider:
3.x - github.com/tpartner/LimeSurvey-Range-Slider-3x
4.x - github.com/tpartner/LimeSurvey-Range-Slider-4x
3.x - github.com/tpartner/LimeSurvey-Range-Slider-3x
4.x - github.com/tpartner/LimeSurvey-Range-Slider-4x
