Hello everyone

I would like to add our company logo to the welcome and end pages. When I click on the image button in the editor, and then on Browse Server, I get this message:
"Cannot find any of the supported PHP image extensions!"

What does it mean and how do I fix it so that I can add images?

(We are self-hosters, if that makes any difference.)

Thanks so much!

Regards
Ilana

Hello, Ilana,

where is there an "image button" in the template editor?

But it doesn't matter.
You can use any picture in the internet as long as you know the url.

I suppose, you want to add the logo onl in the welcome page, not in the question page.

So edit the "welcome.pstpl".

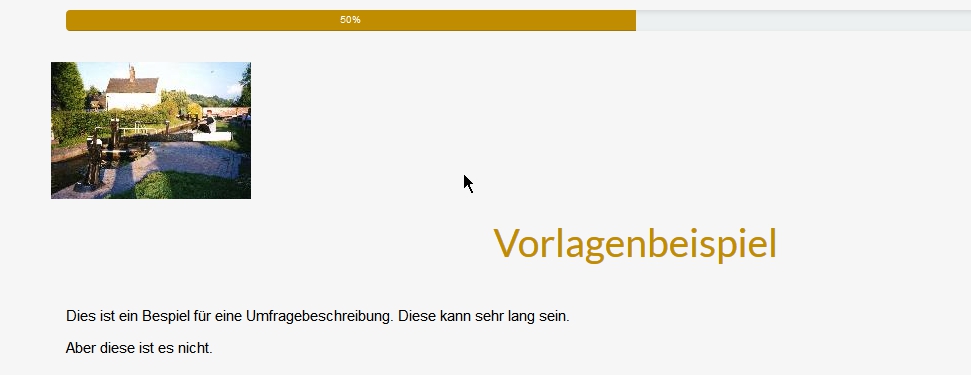

Here the first lines with my included picture (very quick example).


Endpage analogue in "completed.pstpl"


Best regards
Joffm

Hello Joffm

Thank you for your answer. I will attach a screenshot of where I found the image button. (Unless I incorrectly interpreted that "functionality"!)

The images/logo's I want to add aren't available on the internet and are stored locally on my PC. Is there a way of uploading images without them being on the internet?

Also, is there perhaps a simpler way of adding an image without fiddling with code?

Thank you again.

Regards
Ilana

Hi, Ilana,

but this is something quite different.

You talked about the "welcome page", not about the "welcome message"

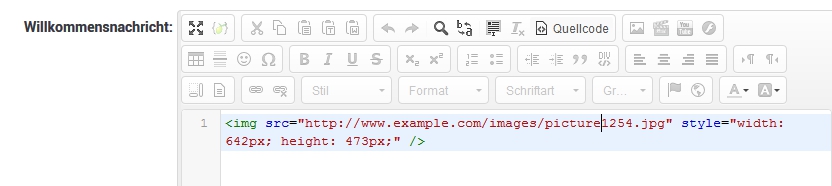

But nevertheless, just insert by the img-tag (of course in "source code mode")


You can set the width and height, but it's not necessary. Depands on the size of the picture.

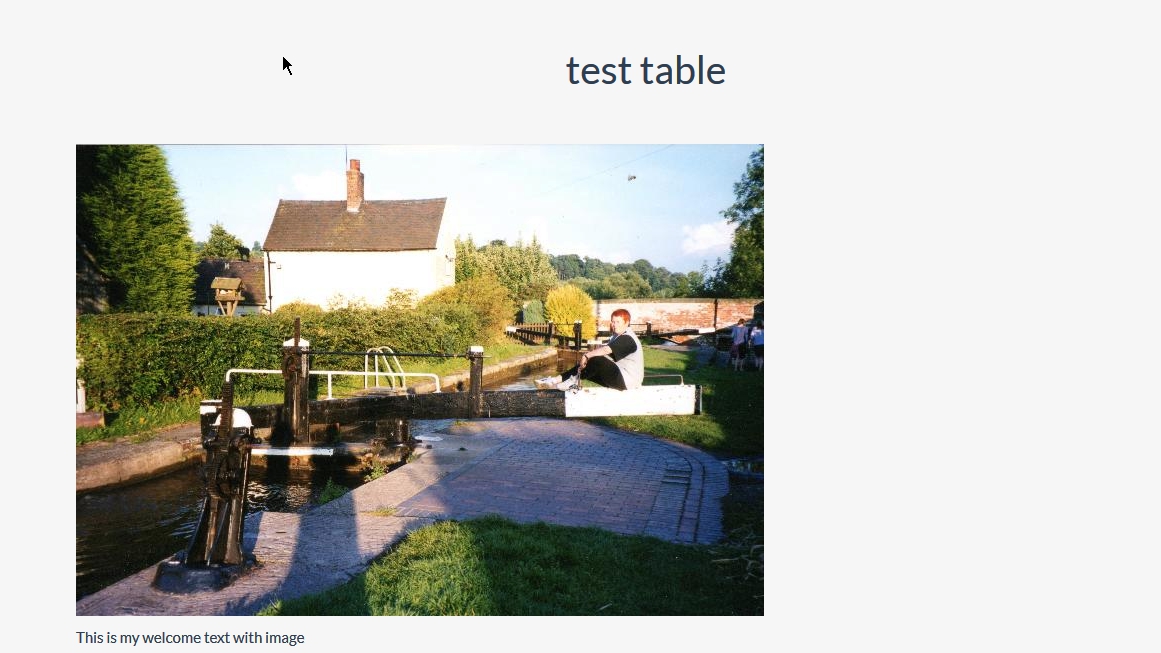

Result:


Best regards
Joffm

Joffm wrote: But nevertheless, just insert by the img-tag (of course in "source code mode")

As long as the images are not uploaded to the webspace, the img-tags won't help.


@IlanaWilken:
What Limesurvey version/build is used? What webstack (PHP version, Webserver, OS) is used?
You PHP installation is missing some extensions.
Depending on the OS you need to install these php graphic extensions.
Have you tried to get past the error message about the missing extensions.
The upload should not be depend on these graphic extensions.

Optional PHP Extensions:
GD-Library with FreeType support installed is needed for captchas or nice charts in statistics - see PHP GD-Library Extension documentation

Or you upload the images via other ways (e.g. FTP or via a Controlpanel, if availble) to the webspace and follow the instructions of Joffm.

jelo wrote: […]
The upload should not be depend on these graphic extensions.

Optional PHP Extensions:
GD-Library with FreeType support installed is needed for captchas or nice charts in statistics - see PHP GD-Library Extension documentation

Or you upload the images via other ways (e.g. FTP or via a Controlpanel, if availble) to the webspace and follow the instructions of Joffm.

Seems GD is needed by third_party extension kcfinder. I update manual according to this information.

[edit]
Manual updated : www.limesurvey.org/manual/Installation_-_LimeSurvey_CE
GD (or convert or … ) is a really common PHP library
